Accessing the Kubed Nodes ¶

At times you may need to access our docker containers running in the WebexKubed environment to investigate a problem.

Command and Control UI : https://ui.int.mccprod.prod.infra.webex.com/help

Go to the Command and Control page. Make sure you have the right cluster selected

w/JFK selected : https://ui.int.mccprod.prod.infra.webex.com/clusters/wjfkgen-p-1

w/DFW selected: https://ui.int.mccprod.prod.infra.webex.com/clusters/wdfwgen-p-5

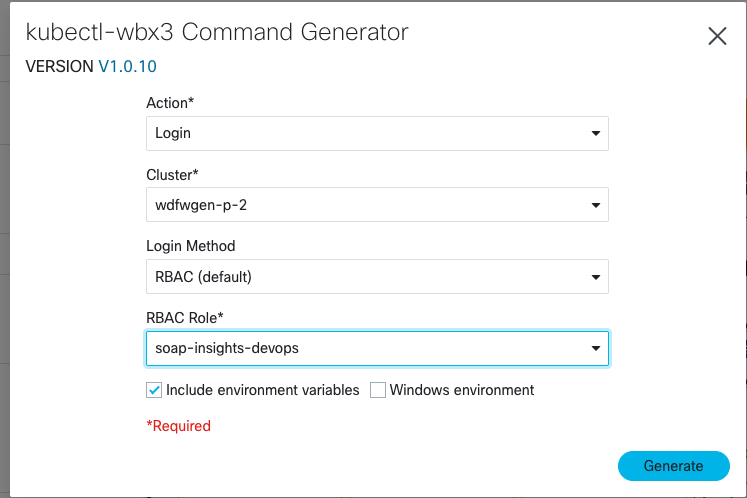

Click the generate shell icon in the upper left.

Generate the kubectl commands to copy to your shell.

On the dialog box you'll need to select our RBAC role: soap-insights-devops After you click the Generate button the dialox box will expand and give you a few lines to copy to your local terminal.

Access Keeper

One variable you'll have to get into Vault for. Fortunately the Command Generator gives you a link for that.

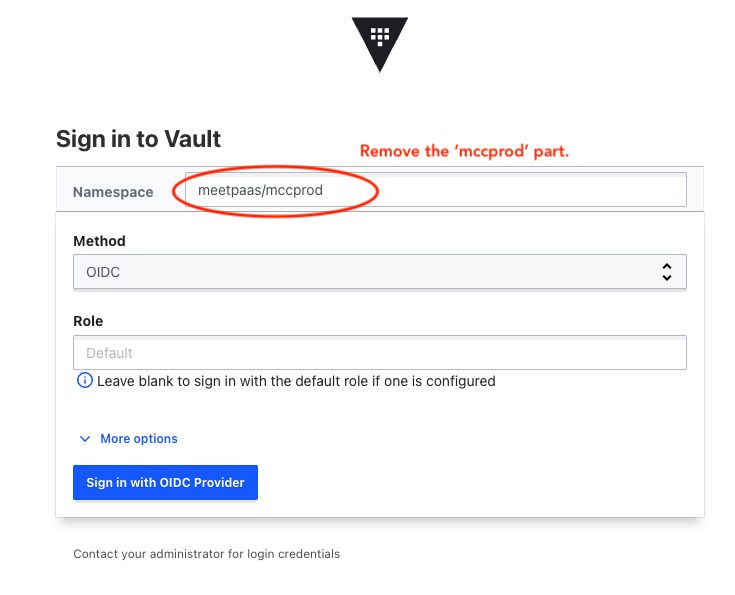

Clicking over to that you'll sign into Vault

Export the vault token

Once signed into Vault you can copy the token.

In your local shell you can export that

% export VAULT_TOKEN=my_token_value

.. and then you can copy/paste the other lines you got from the command generator. If everything goes well after the last command you'll see a success message...

Success! kubeconfig has been set!

At this point you can move on and run kubectl commands.

Get the list of pods.
```
% kubectl get pods -n apdex
```
or for the Logstash nodes... (note the hyphen here...)
```
% kubectl get pods -n stap-logstash
```
or for the STAP application
```
% kubectl get pods -n stap
```
and you'll get a list of containers that looks like this...

NAME                                       READY   STATUS    RESTARTS   AGE
apdex-airflow-scheduler-SOME-HASH-CODE   2/2     Running   2          43h
apdex-airflow-webserver-SOME-HASH-CODE   2/2     Running   0          43h
apdex-airflow-webserver-SOME-HASH-CODE   2/2     Running   0          43h
apdex-airflow-worker-SOME-HASH-CODE      2/2     Running   0          43h
apdex-airflow-worker-SOME-HASH-CODE      2/2     Running   0          43h
...

7. Log into a pod You can then log into one of these using this kubectl command. Note you really do need that -n apdex part at the end, otherwise you will get an error.

% % kubectl exec -it PICK-A-CONTAINER-HERE bash -n apdex

and when you log in you'll be at a bash prompt. For instance....

ubuntu@apdex-airflow-worker-SOME-HASH-CODE:/$ hostname
apdex-airflow-worker-SOME-HASH-CODE

You could then go look at our Airflow DAG logs under /app/logs/.. for instance.

Troubleshooting ¶

Q1. When I try to get shell access to a container I get an error

Error from server (Forbidden): pods "SOME-CONTAINER-ID-HERE" is forbidden: User "SOME-HASH/YOU" cannot get resource "pods" in API group "" in the namespace "default"

A1. Yeah, you really need to add the -n apdex in your kubectl command.
