Apdex Architecture & Data Flow

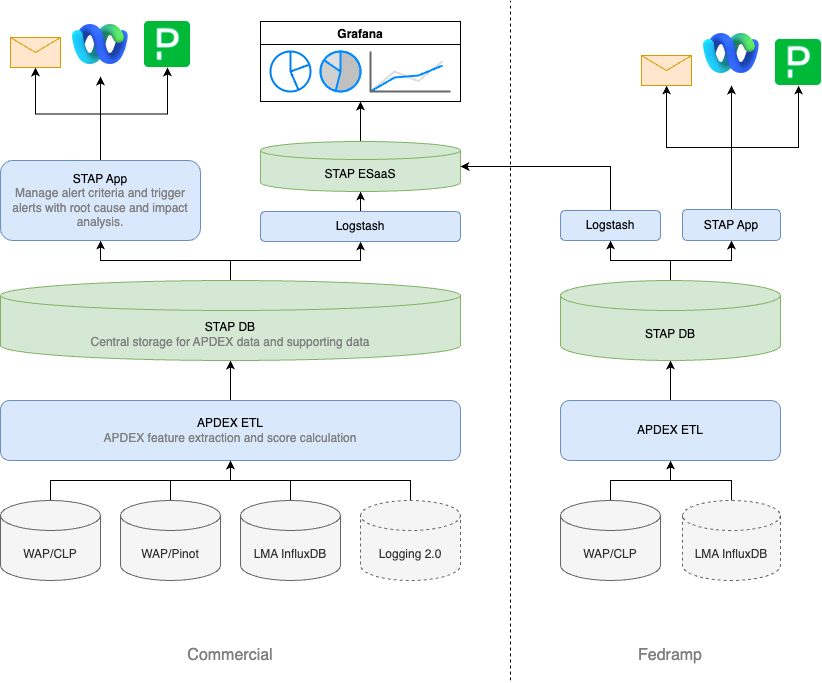

APDEX Overall Dataflow


apdex_overall_dataflow.drawio <https://wiki.cisco.com/download/attachments/1422238248/apdex_overall_dataflow.drawio?version=4&modificationDate=1671136001000&api=v2>_

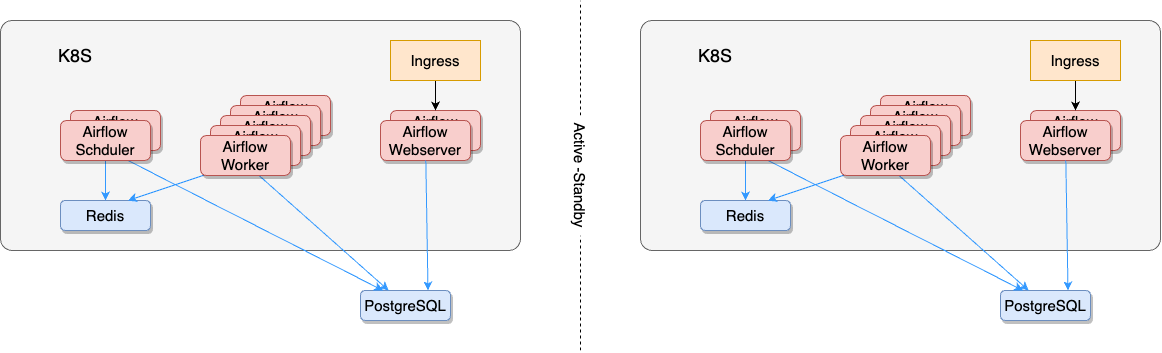

APDEX ETL (Airflow) Architecture


apdex_overall_dataflow.drawio <https://wiki.cisco.com/download/attachments/1422238248/airflow-architecture.drawio?version=2&modificationDate=1671127112000&api=v2>_
