Play with kubernetes controller

Concept ¶

Knowledge about CR, CRD

Kubernetes Components

Article - Kubernetes Operators 101

Framework for building Kubernetes APIs

kubebuilder

Go clients for talking to a kubernetes cluster

client-go

Steps ¶

Login cluster wbx3op-sjctmp01 in cloud hfedev
1. Run the play-controller server locally (optional if already exists in cluster or held locally by someone else).
Create a namespace with your CEC_ID.
```
```text
kubectl create ns CEC_ID
```
```

Create a Secret on your namespace with following requirements:

1. Secret name is `workshop-secret`.
2. Secret data with `botToken`(base64 encoded):

    ```text
    TldVM05tVmlabVV0TUdSaFpDMDBPRFUxTFRreU0yUXRZek14WldZNE56QTJNREU0TW1VNVltRm1OelF0TmpWa19QRjg0XzFlYjY1ZmRmLTk2NDMtNDE3Zi05OTc0LWFkNzJjYWUwZTEwZg==
    ```

3. Secret data with `roomId`(base64 encoded):

    ```text
    WTJselkyOXpjR0Z5YXpvdkwzVnpMMUpQVDAwdk56WTJNRGMwWVRBdE56Vm1ZUzB4TVdWa0xXRTNPREV0WmpjNU16TTJOamhsTW1GbQ==
    ```

    Hints:

    ```yaml
    apiVersion: v1
    data:
      botToken: XXXX
      roomId: XXXX
    kind: Secret
    metadata:
      name: workshop-secret
      namespace: XXXX
    type: Opaque
    ```

    ```text
    kubectl apply -f xxxx -n CEC_ID
    ```

Create a CR based on below CRD on your namespace (No need to apply CRD in cluster if already exists).

apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.11.1
  creationTimestamp: null
  name: plays.workshop.crd.play.controller.io
spec:
  group: workshop.crd.play.controller.io
  names:
    kind: Play
    listKind: PlayList
    plural: plays
    singular: play
  scope: Namespaced
  versions:
  - name: v1
    schema:
      openAPIV3Schema:
        description: Play is the Schema for the plays API
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: PlaySpec defines the desired state of Play
            properties:
              who:
                description: Who is a field of Play. Edit play_types.go to remove/update
                type: string
            type: object
          status:
            description: PlayStatus defines the observed state of Play
            type: object
        type: object
    served: true
    storage: true
    subresources:
      status: {}

Hints:

apiVersion: workshop.crd.play.controller.io/v1
kind: Play
metadata:
  name: play-sample
  namespace: XXXX
spec:
  who: "Ted Zhao"

kubectl apply -f xxxx -n CEC_ID

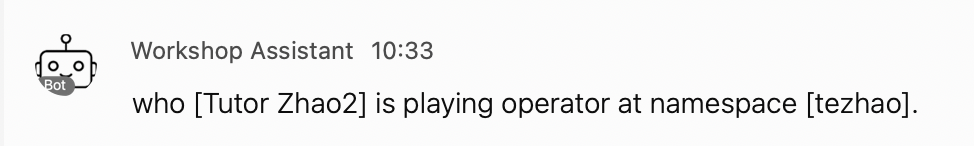

After you create or update the CR in cluster wbx3op-sjctmp01, the bot will send a message in the room, according to the botToken and roomId in Secret yaml.

Code ¶

see Monitoring/play-controller on GitHub
