How to troubleshoot online? ¶

AWS Log ¶

AWS-CouldWatch (https://console.aws.amazon.com/cloudwatch/home?region=us-east-1#logsV2:log-groups)

We can login the instances by the GSS springboard, referring to: GSS Springboard

Database ¶

Get postman methods with the link: https://www.getpostman.com/collections/05d6742acca87940f01a
Some APIs are configured on AWS api gateway, then lambda would be triggered to query the database data.
For example:
prod env:
POST https://5g1dzyy1v9.execute-api.us-east-1.amazonaws.com/v1/query

{
  "sql": "SELECT * from status_maintenance_dcs where dc_id = 1"
}

Header: x-api-key: p3LFPIaem41Cem64qaOQbaoBZ7KPLv6q5xijm0D3

Response:

{
  "success": true,
  "request": {
    "sql": "SELECT * from status_maintenance_dcs where dc_id = 1",
    "timeout": 30,
    "fetchSize": 10,
    "logBucket": "log-prod-status.webex.com",
    "logBucketKey": "prod/2021/01/b1ebd6bc-2b5e-4958-b6c4-c09efd3e1df3.log",
    "executionId": "b1ebd6bc-2b5e-4958-b6c4-c09efd3e1df3"
  },
  "elapsedTime": 9663,
  "rows": [
    {
      "dc_id": "1",
      "dc_name": "San Jose"
    }
  ]
}

Jenkins ¶

Issue: Jenkins can not upload files to S3.

Login Jenkins and open https://engci-private-sjc.cisco.com/jenkins/pda/credentials/store/system/domain/_/credential/gss-aws-deployer/

Refer the wiki How to request for GSS permissions？and refresh AWS access key id

Beanstalk ¶

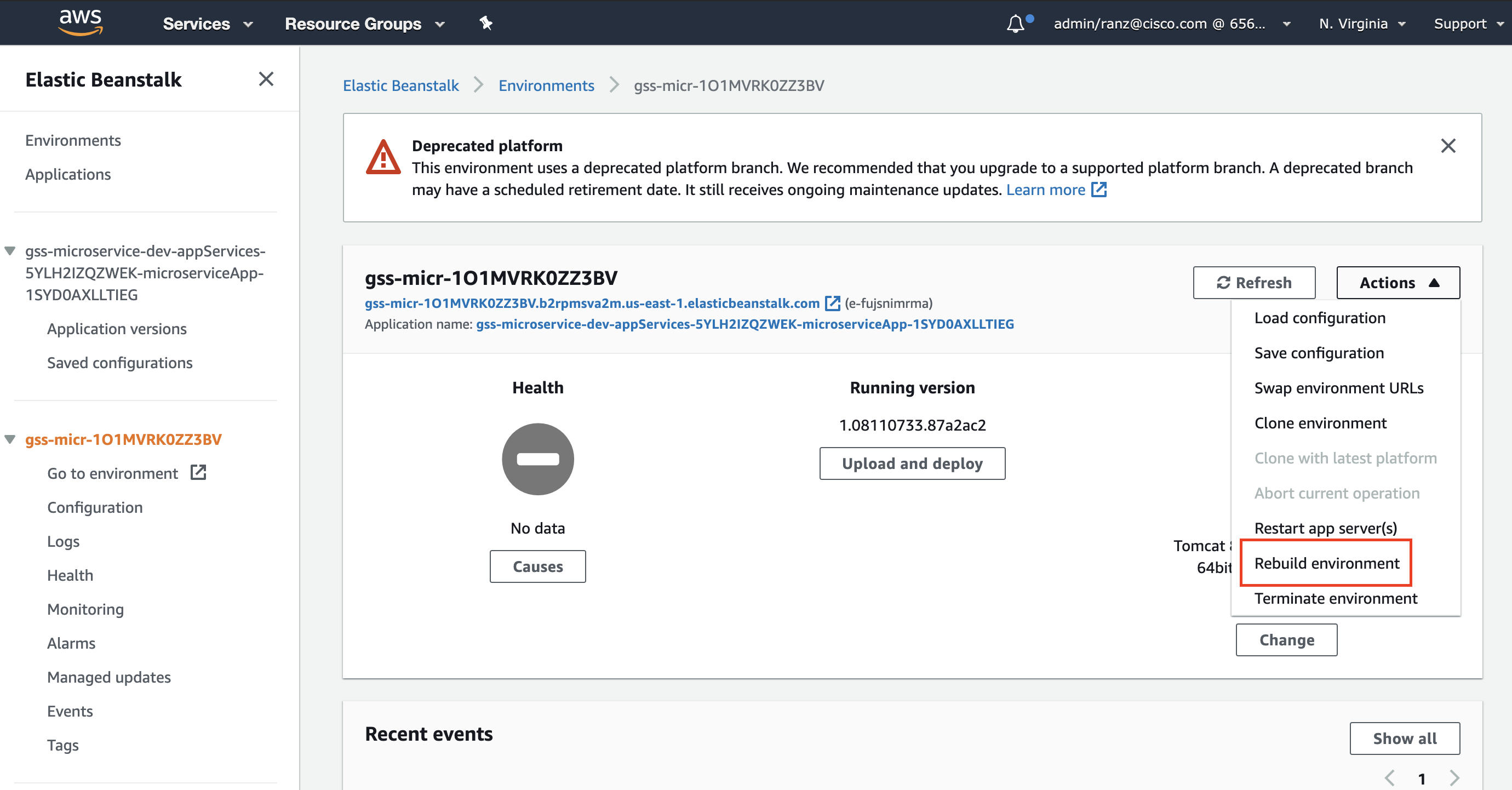

Issue: How to rebuild the environment on AWS

Once rebuilding environment, all information will be initialized. So the following 2 steps are necessary:
Create a new environment
Create a new environment with the same configuration as "old environment", but change the ACM configuration to point to an existing certificate.
Deploy the application to the new environment(download the application in 'Application Versions', and select 'Upload and deploy' in Environments)
On the environment overview page, choose Environment actions, and then choose Swap environment URLs.
1. For Environment name, select "old environment"
Choose Swap.
Change CNAME to the new environment
Open a ticket in https://ciscowebex.servicenowservices.com/sp?id=index

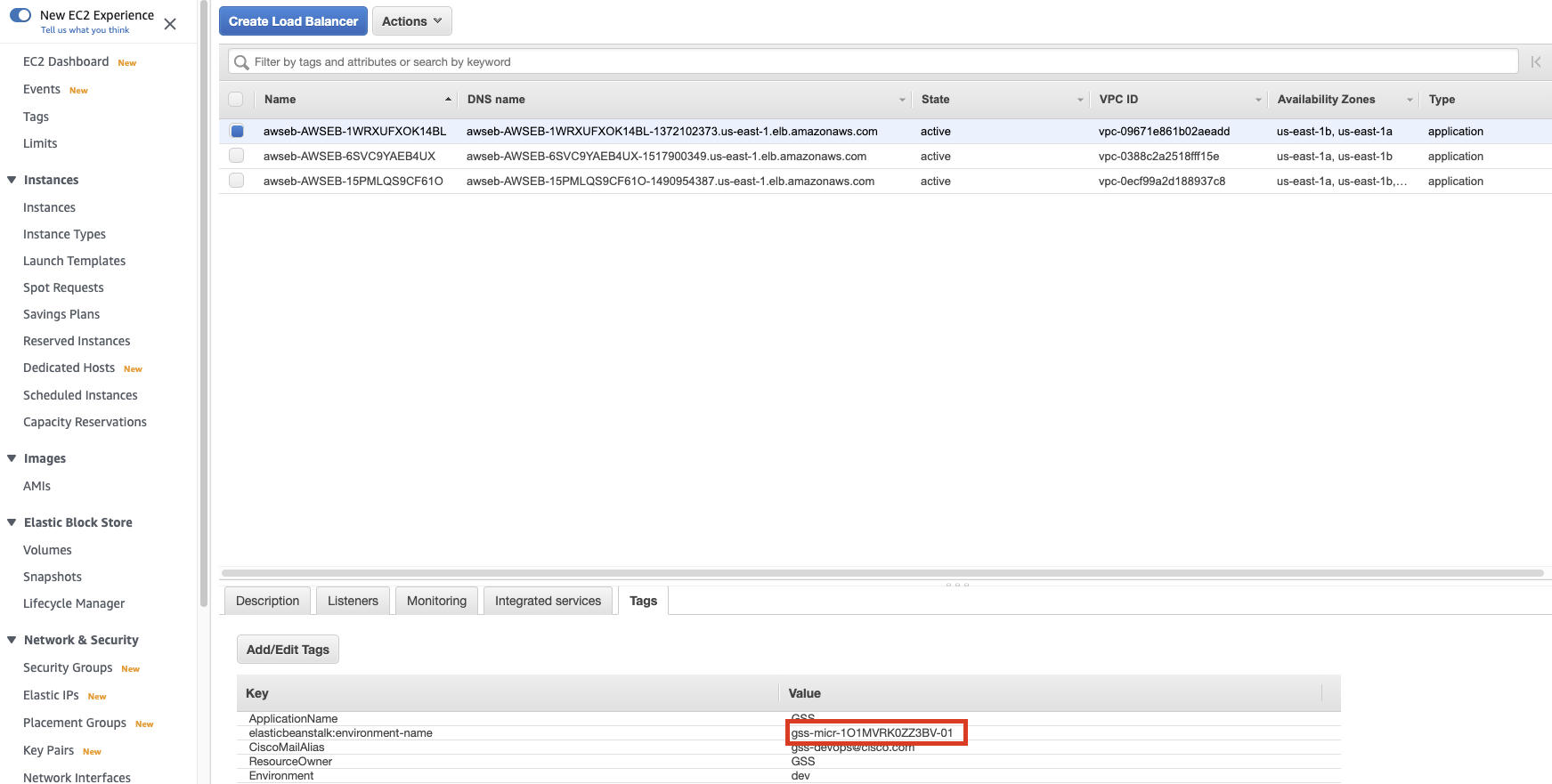

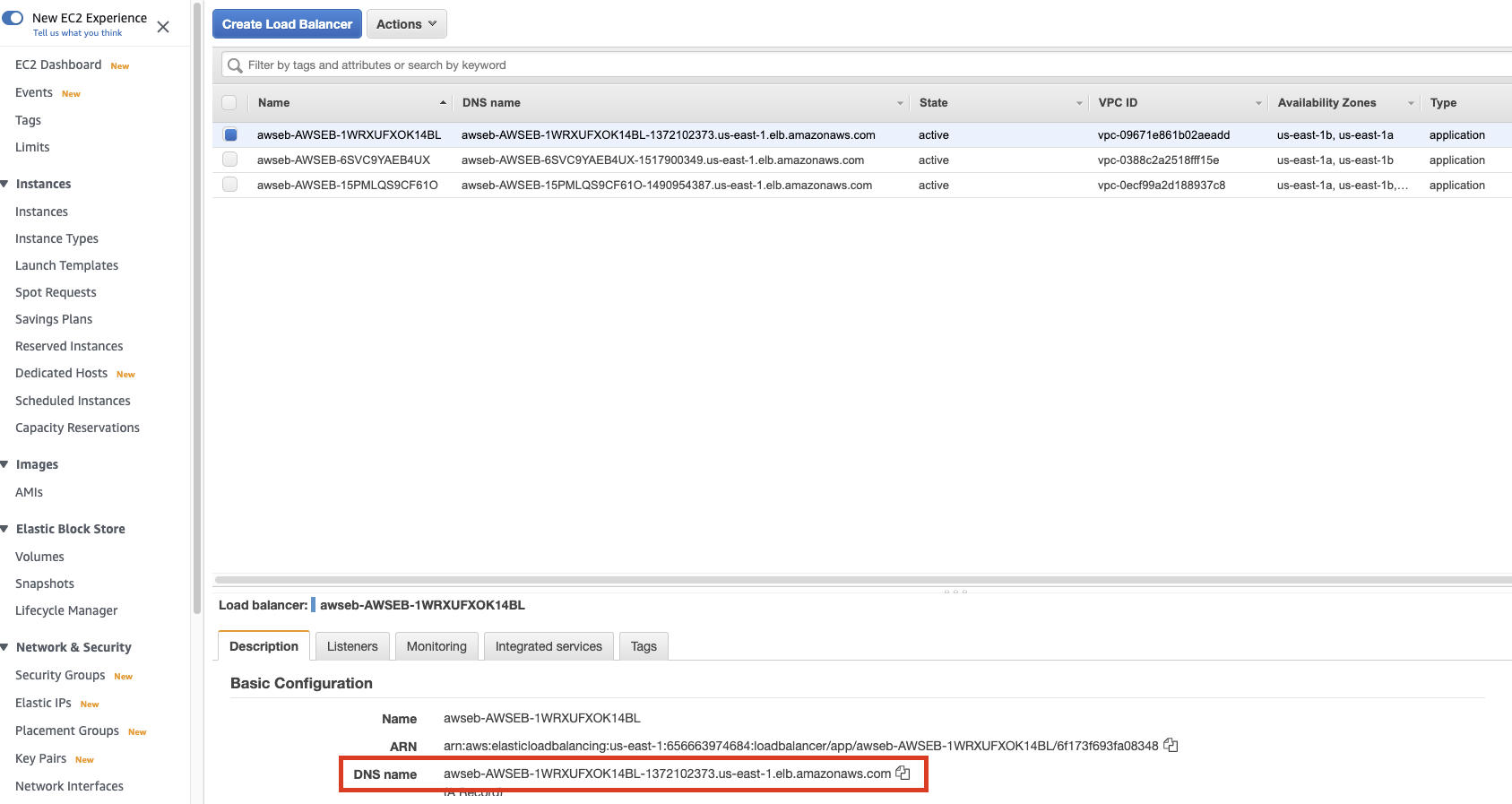

Find the new load balancer DNS(find the new environment name first in Tags) in AWS EC2

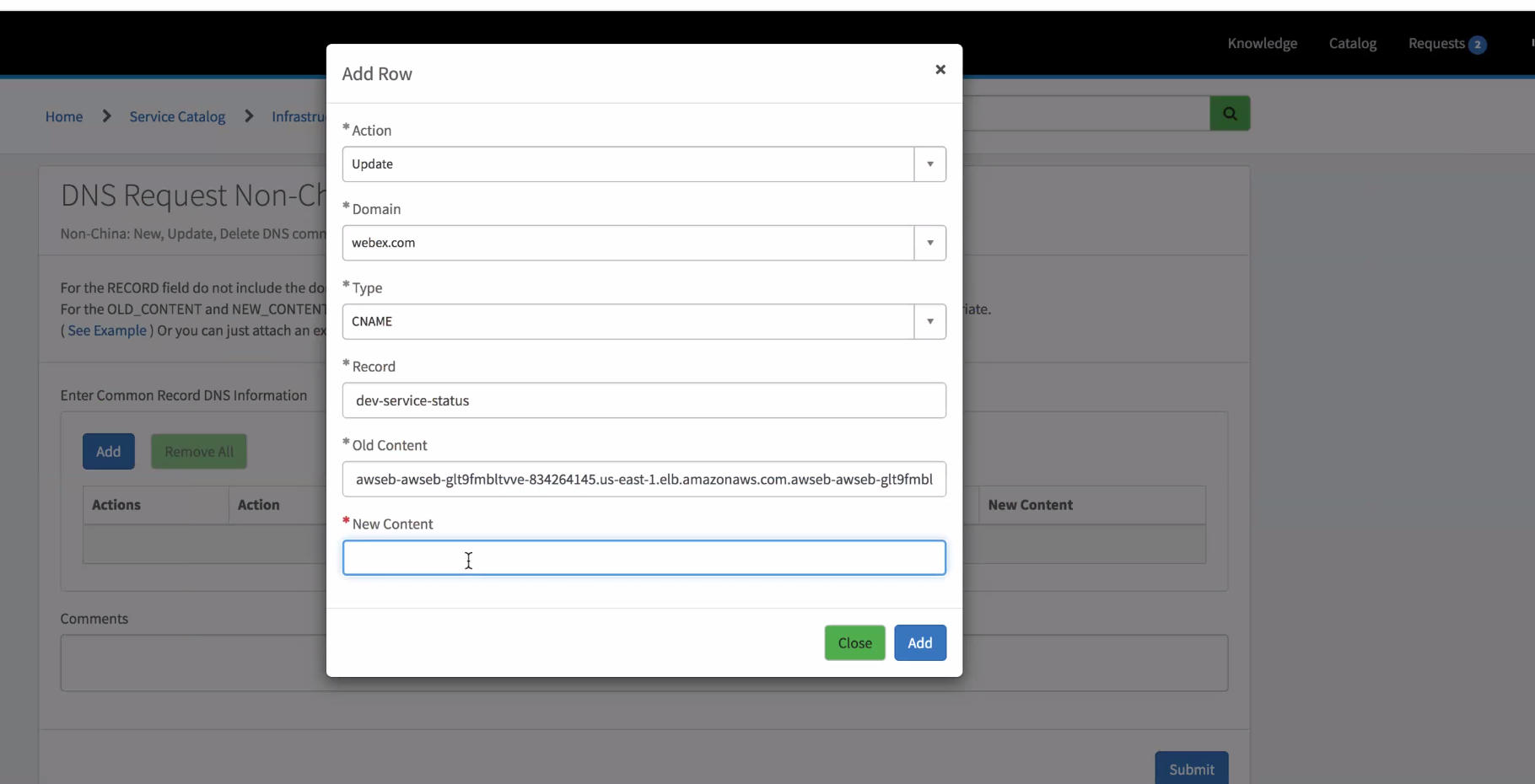

c. Open 'DNS Request Non-China', the Old Content is old load balancer and the New Content is new load balancer

Note:

Need to wait for a while, check whether the CNAME has been modified successfully through command "dig *-service-status.webex.com"
