Site Verification for Saudi Datacenter

MCT UI based solution was applied in the site verification on Webex service by performing practices like schedule meeting, start and join meetings like real user. This make sure all the services deployed in target cluster are overall working fine and could be delivered to end users.

UI Based Agents were deployed in JFK and DFW datacenter, remotely perform UI based test cases every 30 mins to perform user interface like real user on the Webex sites, where were newly set up in Saudi datacenter to verify if the site is functional. It covers multiple sceanrios like:

  • Schedule Meeting from browsers/application/web page outlook
  • Start and join meeting
  • Start meeting and create Slido
  • Start meeting and recording
  • Review recording and add chapter
  • Login and update profile in admin.webex.com
  • Login and update profile in user.webex.com

The test cases were created in a human-friendly YAML format, significantly reducing engineering efforts. In the future, we plan to utilize LLMs to generate test cases directly from natural language.

Example ΒΆ

version: 1.0
test_type: hybrid
actions:
- action: click
  target: click chapter button
  description: click chapter button
  target_locator:
    by: id
    value: "wxp-chapter-tab"
- action: wait
  target: wait 2s for load
  description: wait 2s for load
  wait: "2"
- action: input
  target: input chapter text
  description: input chapter text
  input_text: 00:00:00 test1`n00:00:03 test3
  target_locator:
    by: css_selector
    value: "textarea[class='vjs-chapter-textarea']"
- action: click
  target: click ok button
  description: click ok button
  target_locator:
    by: css_selector
    value: "button[class*='vjs-chapter-btn-reverse']"

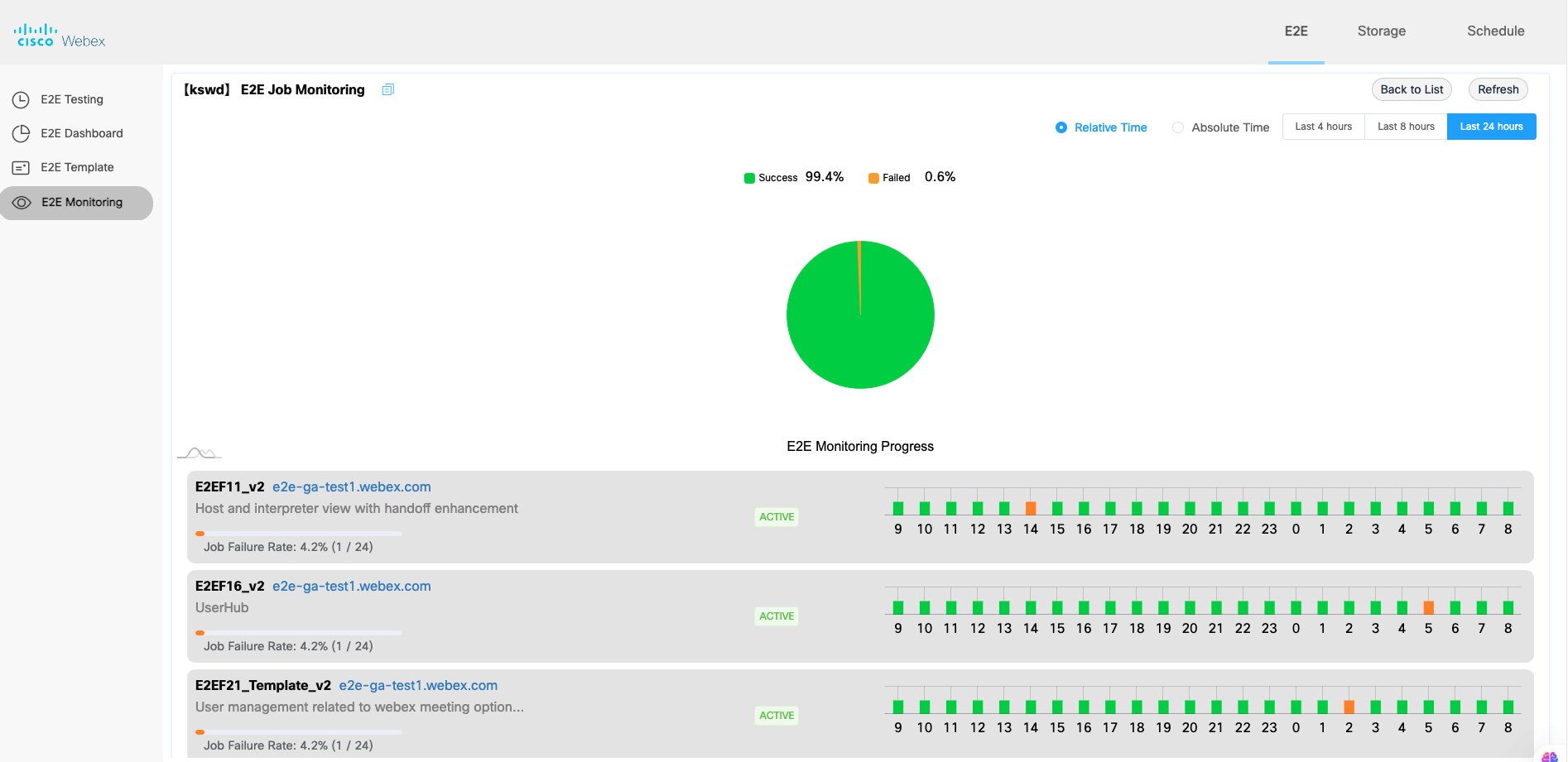

By leveraging the MCT UI End-to-End monitoring solution, the evaluation pass rate achieved 99% accuracy, successfully meeting the GA gate requirements.

saudi-evaluation

More details could be found in MCT-SiteVerification-KS
