Plugin Gray Release Jenkins Pipeline Design ¶

Background ¶

Currently, we have to go through lots of steps from coding to release when developing plugins.This situation needs to be enhancement.

This design integrates plugin release, installation, and testing to improve development and testing efficiency.

WorkFlow ¶

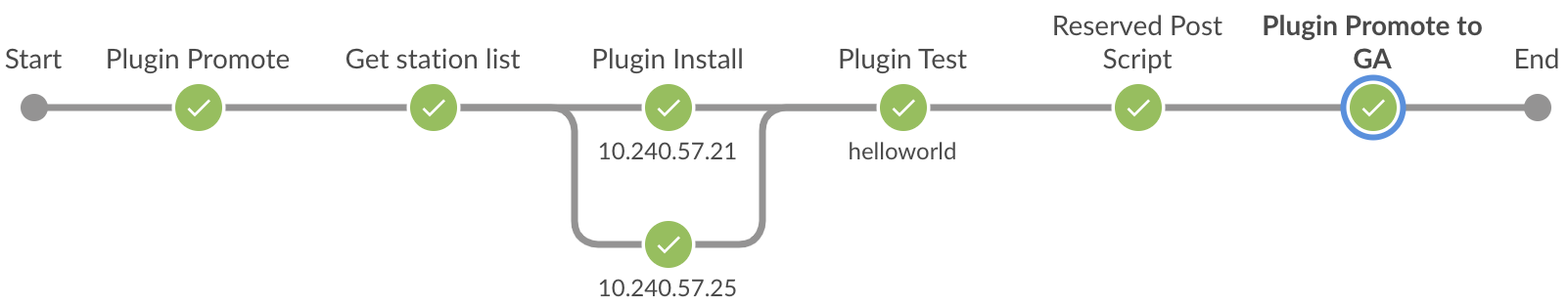

Here is pipeline workflow in Success case.

In this workflow, flow Plugin Install and Plugin Test are Paralleled Tasks.

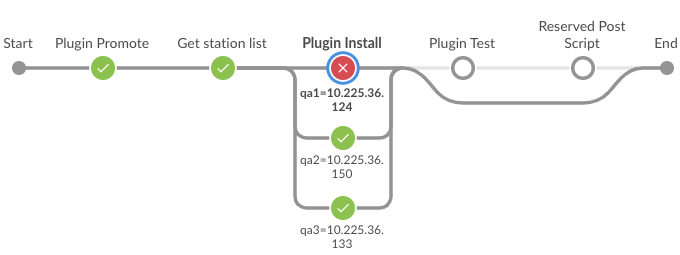

Failure of either workflow will cause subsequent steps to be skipped and lead directly to end.

Plugin Promote ¶

This step will call build Job MCT_Plugin_Gray_Release_QA/BTS/PROD depends on which environment is set and then promote plugin to MCT DB.

Get station list ¶

In this step, we need to call MPI to get station list(mulsvr / winmwt) which need to trigger plugin installation immediately.

Related MPI - Get station list - https://{mpi}/mpi/plugin/release/gray/linux-station - https://{mpi}/mpi/plugin/release/gray/windows-station

Plugin Install ¶

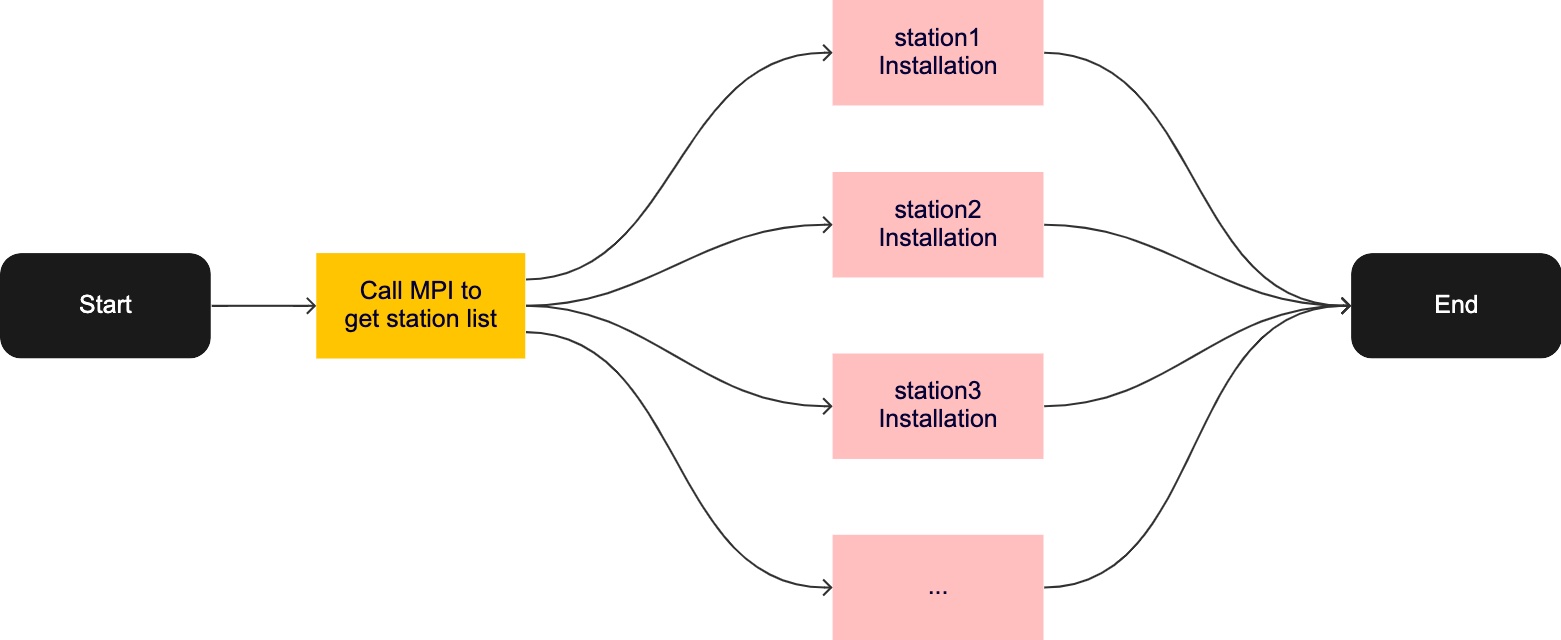

Trigger plugin installation based on station list from previous Step.

After getting station list, PluginAutoManager of each station is triggered and starts installation in parallel.

Plugin Test ¶

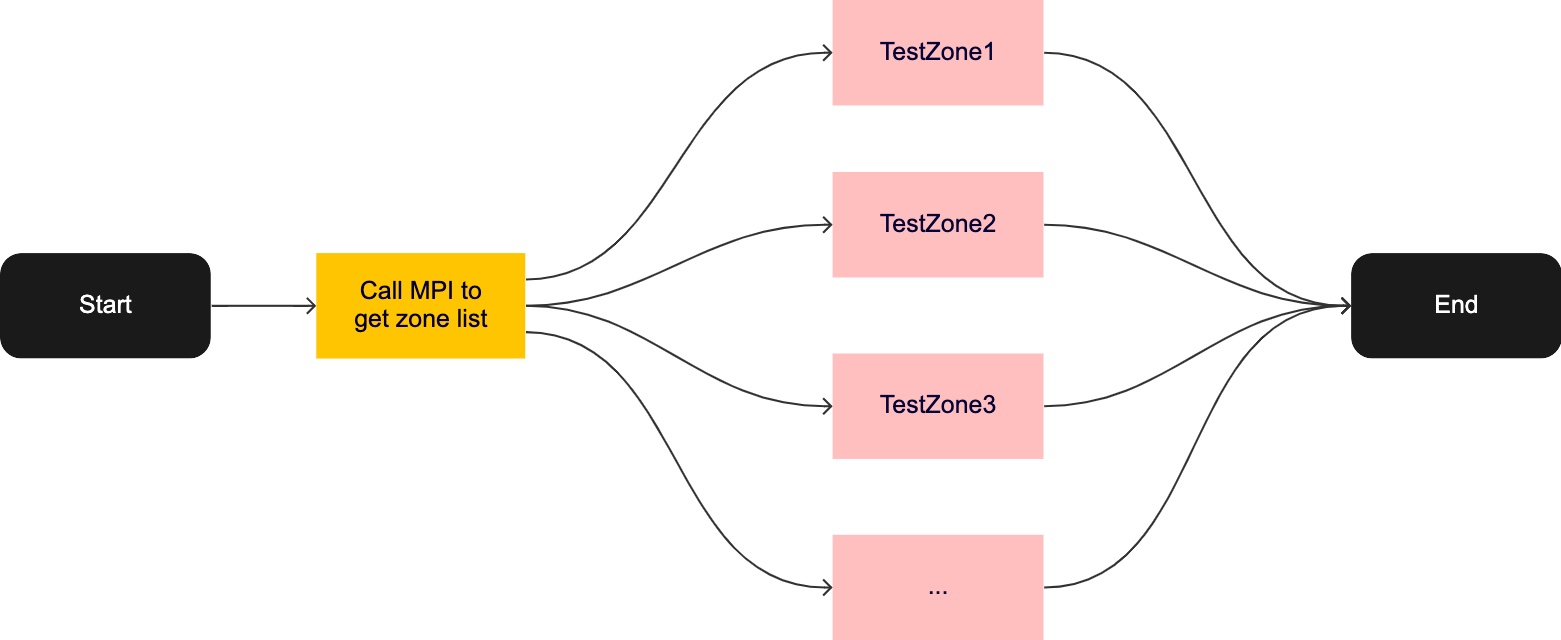

In this step, we need to call MPI to get all test zones related to plugin which needed to be released under specific cluster (Plugin-Linux / Plugin-Windows) in parallel.

Related MPI - Get zone list according to full package name. - Test zone - https://{mpi}/mpi/test/zone/${Zone_Name}?username=mctpostverify - https://{mpi}/mpi/test/query/{session_id}?/detail=true

Reserve Post Script ¶

This step is used to do post work after test (optional)

Promote Plugin to GA ¶

If all steps above pass, call build Job MCT_Plugin_Gray_Release_QA/BTS/PROD to promote plugin to GA status.
