PluginAutoManager Service Design ¶

Background ¶

In the step of Plugin Gray Release Jenkins Pipeline, we need to find a way to trigger PluginAutoManager to run immediately.

Due to PluginAutoManager execution is a scheduled task controlled by cronjob, we need to develop a service to achieve this requirement.

Technical Framework ¶

Due to PluginAutomanager is written in Python, Service is implemented based on Python and use Flask and Waitress in order to code reuse and shorten the development cycle.

Flask: https://flask.palletsprojects.com/

Waitress: https://docs.pylonsproject.org/projects/waitress/

Pip Dependencies: - flask - flask_restful - waitress

API design ¶

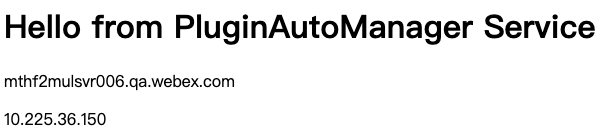

Home page ¶

• Path:/pluginautomanager
• Response: html

HealthCheck ¶

• Path:/pluginautomanager/healthcheck
• Method: GET
• Response: OKOKOK

Install ¶

Trigger Plugin Installation synchronous. - Path: /pluginautomanager/install - Method: PUT - Response: OKOKOK

GetPackages ¶

Return plugin list on current station(starts with WBXmct). - Path: /pluginautomanager/packages - Method: GET - Response: json

{
    "status": "OKOKOK",
    "errorMessage": null,
    "packages": [
        "WBXmctwebcast-1.0.0-28.x86_64",
        "WBXmctESCountMonitor-1.0.0-8.x86_64",
        "WBXmctEdgeAudioConnectivity-1.0.0-109.x86_64",
        "WBXmctHomerPingDirect-1.0.0-4.x86_64",
        "WBXmctCLAPShardsizeMonitor-1.0.0-114.x86_64",
        "WBXmctJavaScheduleMeetingMonitor-1.0.0-118.x86_64",
        "WBXmctglobal-ivr-mgr-file-1.0.0-152.x86_64",
        "WBXmctthinclienthc-1.0.0-14.x86_64",
        "WBXmctSSHMonitor-1.0.0-130.x86_64",
        ...
    ]
}

SearchPackage ¶

Return plugin list which contains pkgname on current station(starts with WBXmct). - Path: /pluginautomanager/packages/<pkgname> - Method: GET - Response: json

Example request: /pluginautomanager/packages/Homer

{
    "status": "OKOKOK",
    "errorMessage": null,
    "packages": [
        "WBXmctHomerPingDirect-1.0.0-4.x86_64",
        "WBXmctHomerPingCheck-1.0.0-83.x86_64"
    ]
}
