Harness Migration

Overview ¶

What's harness? you can simply understand it as an alternative to argo deployment way.

why need harness migration?

W4G project requires to use harness
the jenkins for argo deployment will be retired

Contact:

lewan@cisco.com for MCT business
caeyao@cisco.com for harness knowledge
Ask FedRAMPers - https://eurl.io/#NNxVTCTbt for harness PR approval

harness configuration ¶

Let's take mct-status-api pull request as an example to demonstrate how to migrate argo deployment to harness deployment.

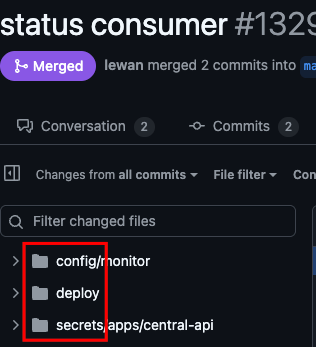

Here are three folder:

config/ defines the application configuration including vault reference
deploy/ defines the deployment configuration including helm chart template and values
secrets/ defines the vault secret reference

config/monitor/mct-vault/import.mct-status-consumer.yaml ¶

mct-vault/ means this file is used to import vault secret reference

---
environments: alpha-wjfk, alpha-wdfw

Means this section will be applied to alpha-wjfk and alpha-wdfw environment

alpha-wdfw maps to wdfwgen-b-2 cluster

File: wbx3-application-groups/application-groups/webex-maas/manifest.yaml
  123:       - name: wbmaas-alpha-wdfw-maas2
  124:         region: us-east-2
  125:         csp: ocp
  126:         clusterType: generic
  127:         metadata:
  128:           DEPLOY_CLUSTER: alpha-wdfw # add for mct - wdfwgen-b-2

Here are two special environment: integration, production

If you render alpha-wdfw configuration, it will include production conf too and production can be overlap with bts and prod env like alpha-wdfw、prod-wdfw.
If you render int-wfra configuration, it will include integration conf too and integration can be overlapped with qa env like int-wfra environments.

For example, if there is a conf be applied to all bts and prod environments, you can set at production one place instead of set it in each environment.

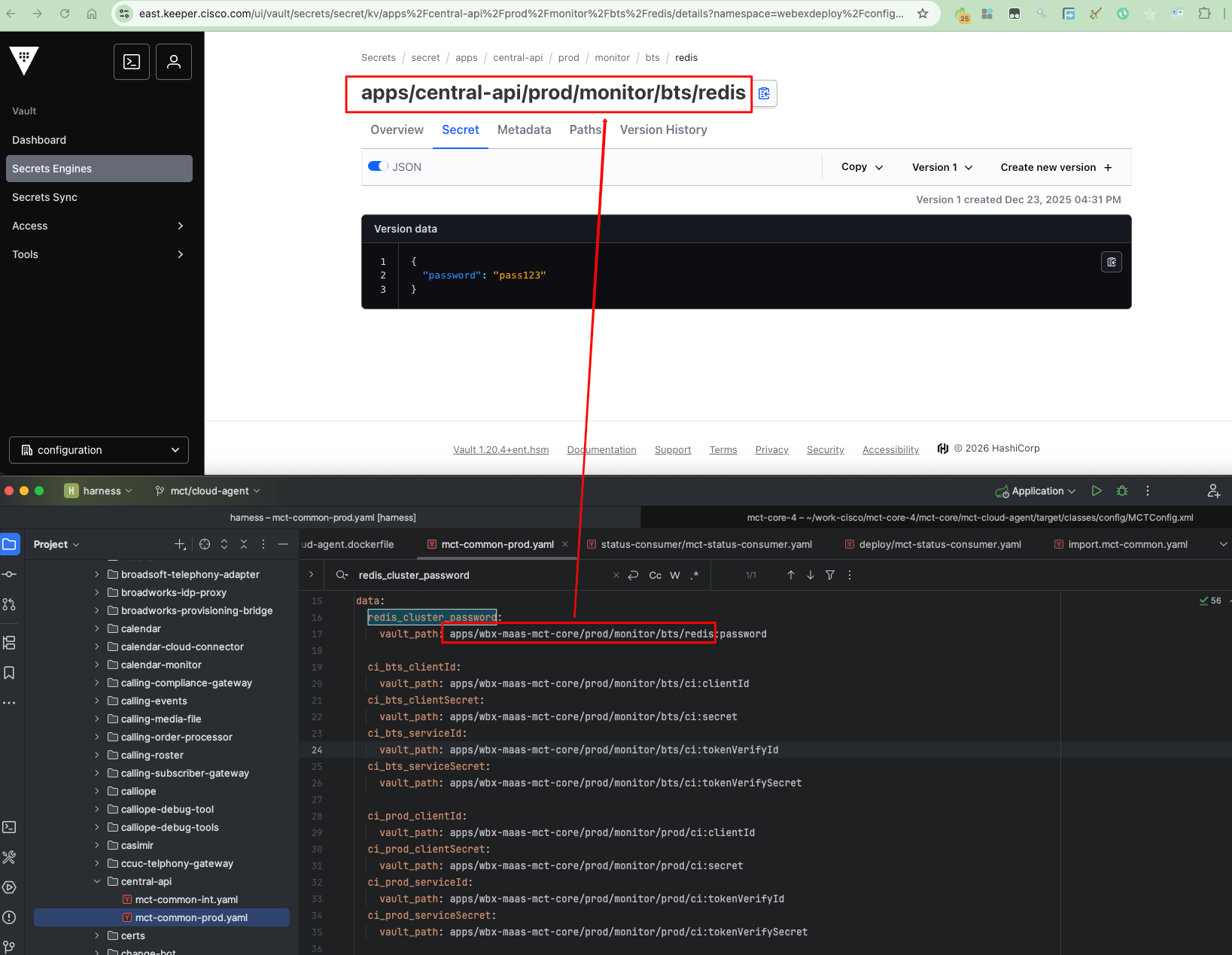

"{{arbitrarySecret('mct-common-prod', 'redis_cluster_password')}}" maps to vault for mct-common-prod id's redis_cluster_password data

config/monitor/status-consumer/mct-status-consumer.yaml ¶

import.file means import other configuration files content here

File: configuration/config/monitor/status-consumer/mct-status-consumer.yaml
    3: import.file:
    4:   - ../mct-common/import.mct-common.yaml
    5:   - ../mct-vault/import.mct-status-consumer.yaml

deploy/mct-status-consumer.yaml ¶

This is the helm chart values template for mct-status-consumer deployment.

secrets/apps/central-api/mct-common-prod.yaml ¶

This file defines all MCT bts and prod vault secret reference.

secrets/apps/central-api/mct-common-int.yaml for qa vault secret reference.

Remember to add application acl reference for target module e.g., mct-status-consumer otherwise it can't access vault secret.

File: configuration/secrets/apps/central-api/mct-common-prod.yaml
1: acl:
2:   app:
...
6:     - mct-status-consumer

File name should same with acl name

config/monitor/status-consumer/mct-status-consumer.yaml maps to mct-status-consumer acl
If mct-status-consumer.yaml rename to mct-status-consumer-new.yaml, then acl name should be mct-status-consumer-new too

deploy/application+ {env}.yaml ¶

Add target module to target environment's services list. For example, if you want to deploy mct-status-consumer on alpha-wjfk-maas2, you should add mct-status-consumer in application+alpha-wjfk-maas2.yaml.

File: configuration/deploy/application+alpha-wjfk-maas2.yaml
    8: services:
...
   12:   - mct-status-consumer

Configuration local test and deploy ¶

Prepare python env ¶

Install uv tool if you don't have it

lewan@LEWAN-M-6FV6 configuration % uv venv py3.12 --python 3.12
Using CPython 3.12.12 interpreter at: /opt/homebrew/opt/python@3.12/bin/python3.12
Creating virtual environment at: py3.12
Activate with: source py3.12/bin/activate
lewan@LEWAN-M-6FV6 configuration % source py3.12/bin/activate
python --version
Python 3.12.12
uv pip install -r scripts/requirements.txt
...

Interpretation of above command:

uv venv py3.12 --python 3.12: create a python virtual environment named py3.12 with python3.12 interpreter
source py3.12/bin/activate: activate the virtual environment
uv pip install -r scripts/requirements.txt: install required python packages in the virtual environment

VAULT_TOKEN requirement:

namespace: webexdeploy/configuration
role: wbx-maas-mct-core-admin

export VAULT_TOKEN=hvs.CAESILZDMNAwY-gMakK20QYsarGuV2LKi1fvNCpt_23Oc3VPGioKImh2cy5RbTZnZERNdFhGbENXWXFDejNPem54T0YuU3hhTm0Qr-Th_iA && \
export VAULT_ADDR=https://keeper.cisco.com && \
vault login $VAULT_TOKEN

Render conf yaml ¶

cd /Users/lewan/work-cisco/harness/configuration && \
scripts/rendertemplate.py --template templates/wbx3-env.profile  --output mct-cloud-agent-alpha-dfw.sh --env alpha-wdfw-maas2 mct-cloud-agent

Interpretation of above command:

cd /Users/lewan/work-cisco/harness/configuration: change directory to configuration repo
--output mct-cloud-agent-alpha-dfw.sh: output file, you can name it as you like
--env alpha-wdfw-maas2 mct-cloud-agent: target environment and application name

Render deploy yaml ¶

cd /Users/lewan/work-cisco/harness/configuration && \
scripts/rendertemplate.py --template templates/wbx3-values.yaml --output mct-cloud-agent-alpha-dfw-deploy.yaml --env alpha-wdfw-maas2 mct-cloud-agent

Interpretation of above command:

cd /Users/lewan/work-cisco/harness/configuration: change directory to configuration repo
--output mct-cloud-agent-alpha-dfw-deploy.yaml: output file, you can name it as you like
--env alpha-wdfw-maas2 mct-cloud-agent: target environment and application name

Handle RENDER ERROR ¶

You may encounter RENDER ERROR if vault secret reference is not yours, you should comment it first, cuz your vault token may not have access permission to that secret. For example:

16:47:24 deploy ERROR RENDER ERROR on string '{{arbitrarySecret('arbitrary-production', 'APPDYNAMICS_AGENT_ACCOUNT_ACCESS_KEY')}}'

Search APPDYNAMICS_AGENT_ACCOUNT_ACCESS_KEY and comment it:

File: configuration/config/application+production.yaml
322: #APPDYNAMICS_AGENT_ACCOUNT_ACCESS_KEY: "{{arbitrarySecret('arbitrary-production', 'APPDYNAMICS_AGENT_ACCOUNT_ACCESS_KEY')}}"

There are plenty RENDER ERROR, it's a known issue.

Copy conf and deploy file to kubed-wxt-service/data ¶

cd /Users/lewan/work-cisco/harness/configuration && \
cp mct-cloud-agent-alpha-dfw.sh mct-cloud-agent-alpha-dfw-deploy.yaml /Users/lewan/work-cisco/kubed/kubed-charts/wxt/kubed-wxt-service/data

VAULT_TOKEN requirement:

namespace: meetpass
role: (empty)

export VAULT_TOKEN=hvs.CAESICl-h6pp_KEM1tifKFgQarsXgda0R06cV8BrRG3cZ58FGioKImh2cy44ZHA5bnBxQ1FTa2JZd0NqaU9KYU1NeEQua2pncnQQntPT4x8
export CLUSTER_NAME=wdfwgen-b-2
export CLUSTER_DOMAIN=prod.infra.webex.com
export CNC_DOMAIN=prod.infra.webex.com
export CNC=mccprod
export VAULT_ADDR=https://keeper.cisco.com
export VAULT_NAMESPACE=meetpaas/mccprod
export INFRA_SERVICE_URL=https://infra.int.mccprod.prod.infra.webex.com
kubectl wbx3 login wdfwgen-b-2 --role wbmaas-mct-prod-admin

Prepare deploy file and deploy ¶

cd /Users/lewan/work-cisco/kubed/kubed-charts/wxt/kubed-wxt-service/data && \
rm -rf service-config.tgz service-config.sh deploy.yaml && \
cp mct-cloud-agent-alpha-dfw.sh service-config.sh && \
cp mct-cloud-agent-alpha-dfw-deploy.yaml deploy.yaml && \
tar -zcvf service-config.tgz service-config.sh && \
cd .. && \
helm upgrade -i mct-cloud-agent -n alpha-wdfw-maas2-mct-cloud-agent . -f data/deploy.yaml --set wbx3.image.tag=harness-20.11.0-84

Interpretation of above command:

cd /Users/lewan/work-cisco/kubed/kubed-charts/wxt/kubed-wxt-service/data: change directory to kubed-wxt-service/data
rm -rf service-config.tgz service-config.sh deploy.yaml: remove old deploy files
cp mct-cloud-agent-alpha-dfw-deploy.yaml deploy.yaml: copy new deploy yaml file
tar -zcvf service-config.tgz service-config.sh: package conf file to service-config.tgz
helm upgrade -i mct-cloud-agent -n alpha-wdfw-maas2-mct-cloud-agent . -f data/deploy.yaml --set wbx3.image.tag=harness-20.11.0-73: deploy mct-cloud-agent to alpha-wdfw-maas2-mct-cloud-agent namespace with deploy.yaml and image tag harness-20.11.0-73

Configuration pull request merge ¶

Need two approvals for configuration pull request, one can from any team member, the other one should be from FedRAMP team for security review, you can ask FedRAMPers - https://eurl.io/#NNxVTCTbt for help.

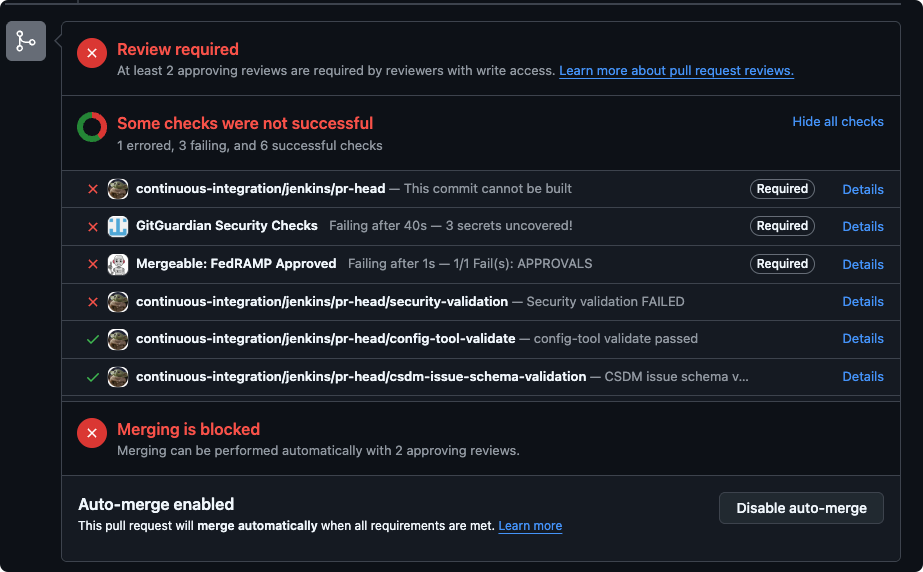

You should pass all pull request check:

Most of issue is lint related, for example use 'false' instead of false for boolean value.
Some issue seems not related to your change, especially GitGuardian Security Checks.
- You can try to create a new PR base on new branch for same code change.
- git cherry-pick -n {commit_id} can help copy your change to new branch.
  - git cherry-pick {commit_id} won't work.
