How to fix cloud agent

Notice: for agent not in mcttx2 and webex external, please check here

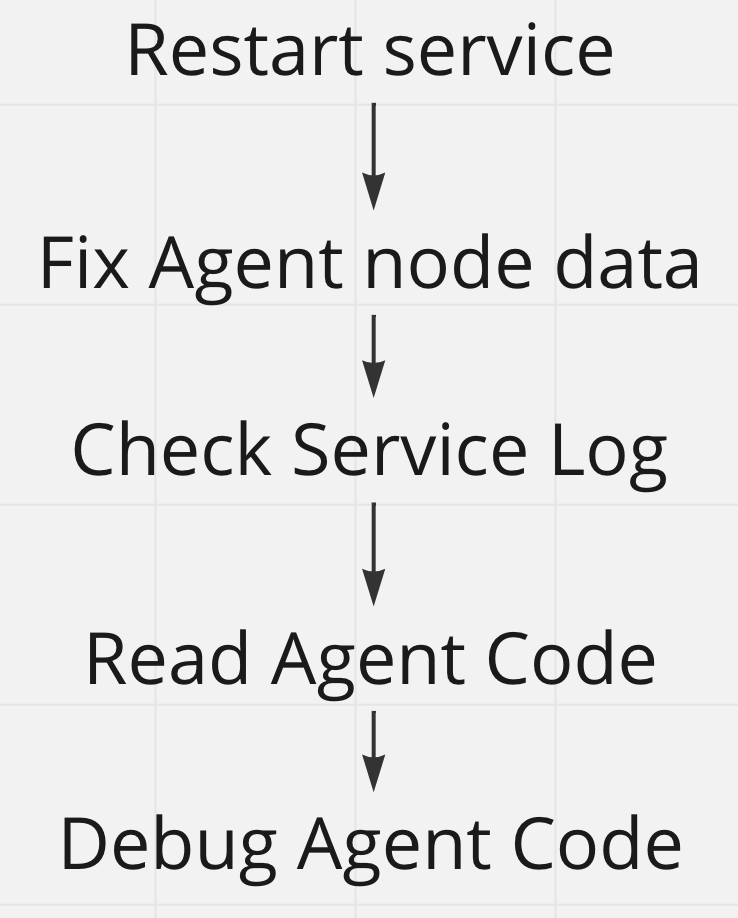

Troubleshot Strategy ¶

From cloud agent background, we can know that if cloud agent has an issue, it probably happens in cloud agent three components: redis、zookeeper, and agent.

Restart is the most common way to fix the issue (e.g., restart Agent or Zookeeper), especially when you want to resolve it quickly instead of finding the root cause.

If restart can not fix issues, we need to get more detailed information (e.g., check agent node information in the database, Redis, zookeeper). Most of the time, correcting incorrect data will solve issues.

If the issue still exists, we can check agent log error and dive into cloud agent code and even debug cloud agent for more specific clues.

Basic cloud agent operation ¶

In order to fix cloud agent with above Troubleshot strategy, we need some specific operations.

Common cloud agent information DB data query: ¶

Query all cloud agent

SELECT *
FROM MCT_AGENT ma
JOIN MCT_AGENT_VIRTUAL_GROUP mavg ON ma.ORG_ID = MAVG.ORG_ID
JOIN MCT_AGENT_ORG mao ON mao.ORG_ID = ma.ORG_ID
WHERE MAVG.TYPE = 2;

Query all cloud agent name

SELECT AGENT_NAME, COUNT (*) AS CNT
FROM MCT_AGENT ma
JOIN MCT_AGENT_VIRTUAL_GROUP mavg ON ma.ORG_ID = MAVG.ORG_ID
JOIN MCT_AGENT_ORG mao ON mao.ORG_ID = ma.ORG_ID
WHERE MAVG.TYPE = 2
GROUP BY AGENT_NAME;

Query all cloud agent outside Webex network

SELECT *
FROM MCT_AGENT ma
JOIN MCT_AGENT_VIRTUAL_GROUP mavg ON ma.ORG_ID = MAVG.ORG_ID
JOIN MCT_AGENT_ORG mao ON mao.ORG_ID = ma.ORG_ID
WHERE MAVG.TYPE = 2
AND AGENT_NAME IN ('CISCOAER01','AOH01', 'ANRT01', 'AOR01') ;

Query WBXSJC03 all cloud agent

SELECT *
FROM MCT_AGENT ma
JOIN MCT_AGENT_VIRTUAL_GROUP mavg ON ma.ORG_ID = MAVG.ORG_ID
JOIN MCT_AGENT_ORG mao ON mao.ORG_ID = ma.ORG_ID
WHERE MAVG.TYPE = 2
AND UPPER (MA.AGENT_NAME) = 'WBXSJC03';

Access cloud agent server ¶

There are only two type of cloud agent server in terms of network: * External Webex network * Internal Webex network

1. External Webex network ¶

There are only 4 cloud agent clusters outside the Webex network. They need a jump server to log in cloud agent server:

cloud agent	jump server
AOR01	35.165.61.241
AOH01	13.59.115.96
ANRT01	52.198.38.197

Access CISCOAER01 192.168.3.115 server case:

log in CISCOAER01 jumper server: ssh wbxbuilds@144.254.67.105
log in 192.168.3.115 in CISCOAER01 jumper server: ssh wbxbuilds@192.168.3.115

2. Internal Webex network ¶

No jumper server. You can directly log in with your CEC account/password

Access cloud agent log ¶

Linux log path: /opt/Webex/mct/cloud-agent/log

Windows log path: C:\Cisco\mct-cloud-agent\log

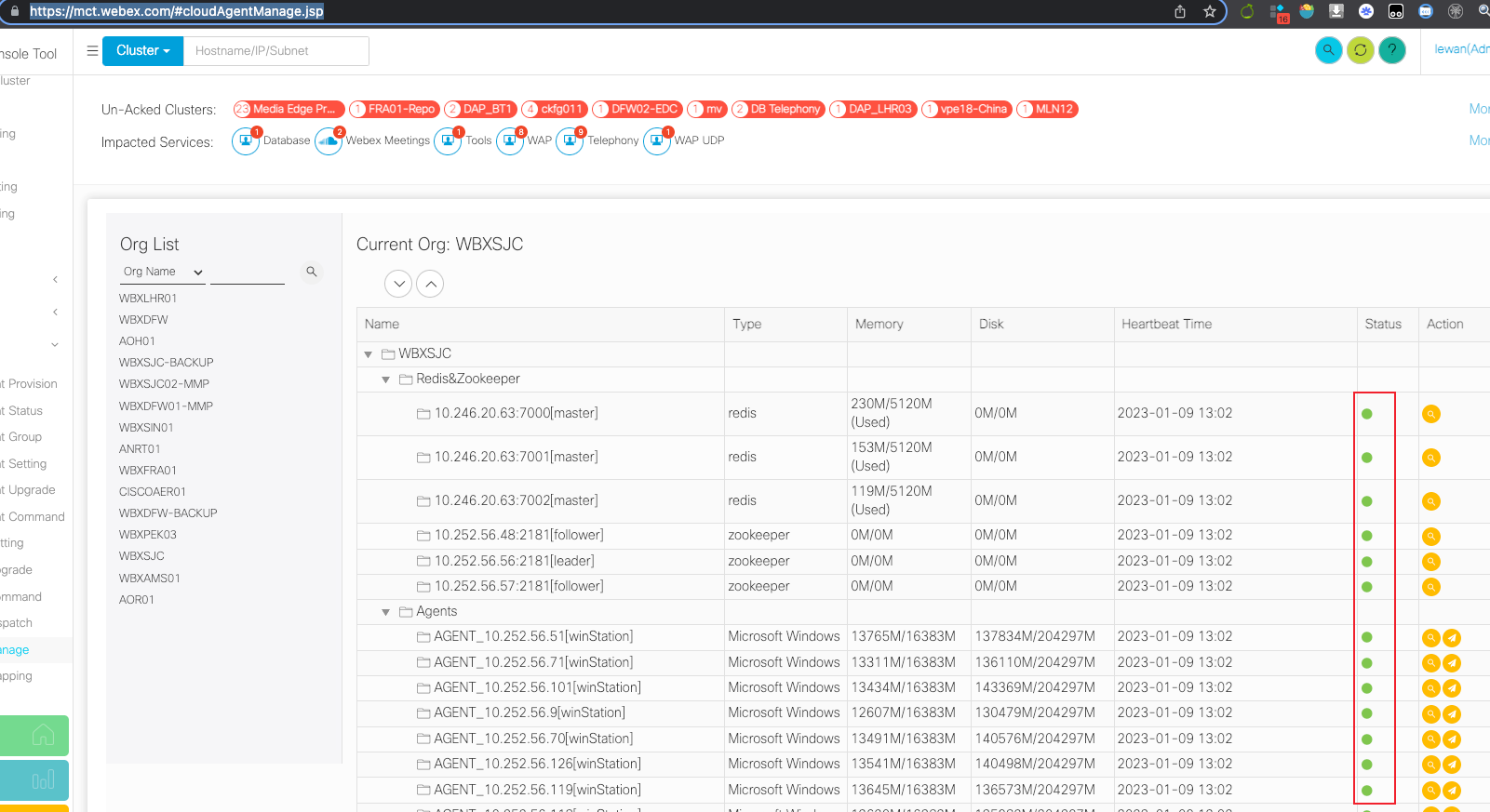

Check cloud agent node information in cloud agent management page ¶

Green means health state, and other color means not health (e.g., cloud agent service is offline)

If any dot is not green, you can try to log in to the server, check the cloud agent service state and restart cloud agent, generally the dot will recover to green color within 5 minutes.

cloud agent healthcheck ¶

curl http://127.0.0.1:18088/station/healthcheck

Notice: you should execute it on a agent server, because agent only accepts the local call

Restart cloud agent on agent server ¶

Linux (CMD with wbx-mct user) : docker compose -f /opt/webex/mct/cloud-agent/docker-compose.yml restart

Windows (CMD with Admin user) : sc stop mct-cloud-agent → sc start mct-cloud-agent

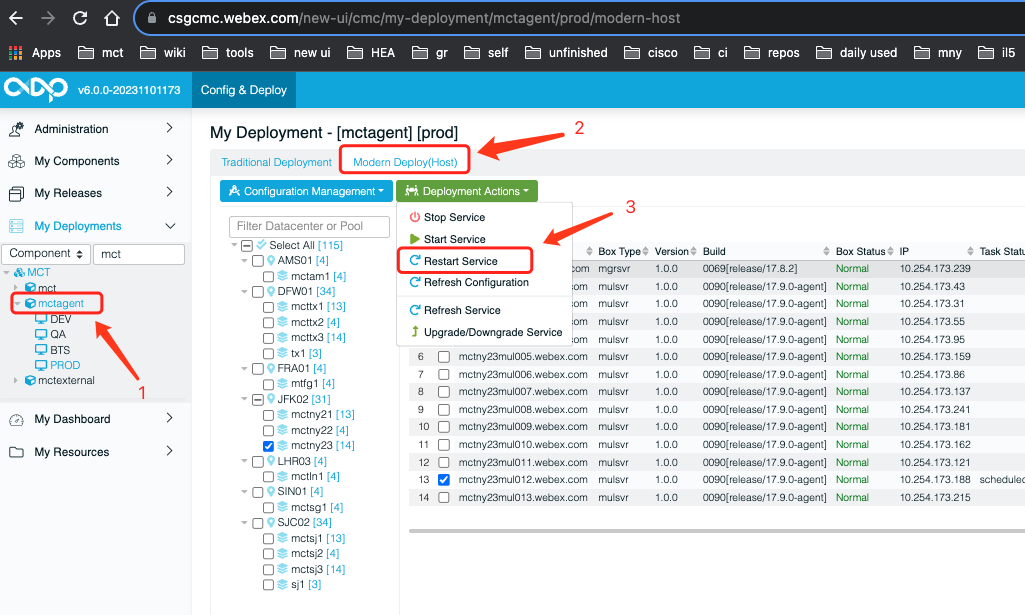

Also it's doable from cmc:

Check information in Zookeeper ¶

1. Check Zookeeper state ¶

[root@mtbt1mje001 lewan]# /opt/zookeeper/zookeeper-3.4.11/bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/zookeeper-3.4.11/bin/../conf/zoo.cfg
Mode: follower

2. Check agent node information in Zookeeper ¶

[root@mthf2mulsvr005 mct]# cd /opt/apache-zookeeper-3.7.1/bin/
[root@mthf2mulsvr005 bin]# zkCli.sh -server 127.0.0.1:2181
Connecting to 127.0.0.1:2181

[zk: 127.0.0.1:2181 (CONNECTED) 0] addauth digest admin:admin
[zk: 127.0.0.1:2181 (CONNECTED) 1] ls /agent/linAgent
[AGENT_10.225.36.124:0000000460, AGENT_10.225.36.133:0000000459, AGENT_10.225.36.150:0000000462, AGENT_172.17.0.2:0000000461]
[zk: 127.0.0.1:2181 (CONNECTED) 2]

Check agent node information in Redis ¶

1. A Redis client is needed ¶

Another Redis Desktop Manager is a choose.

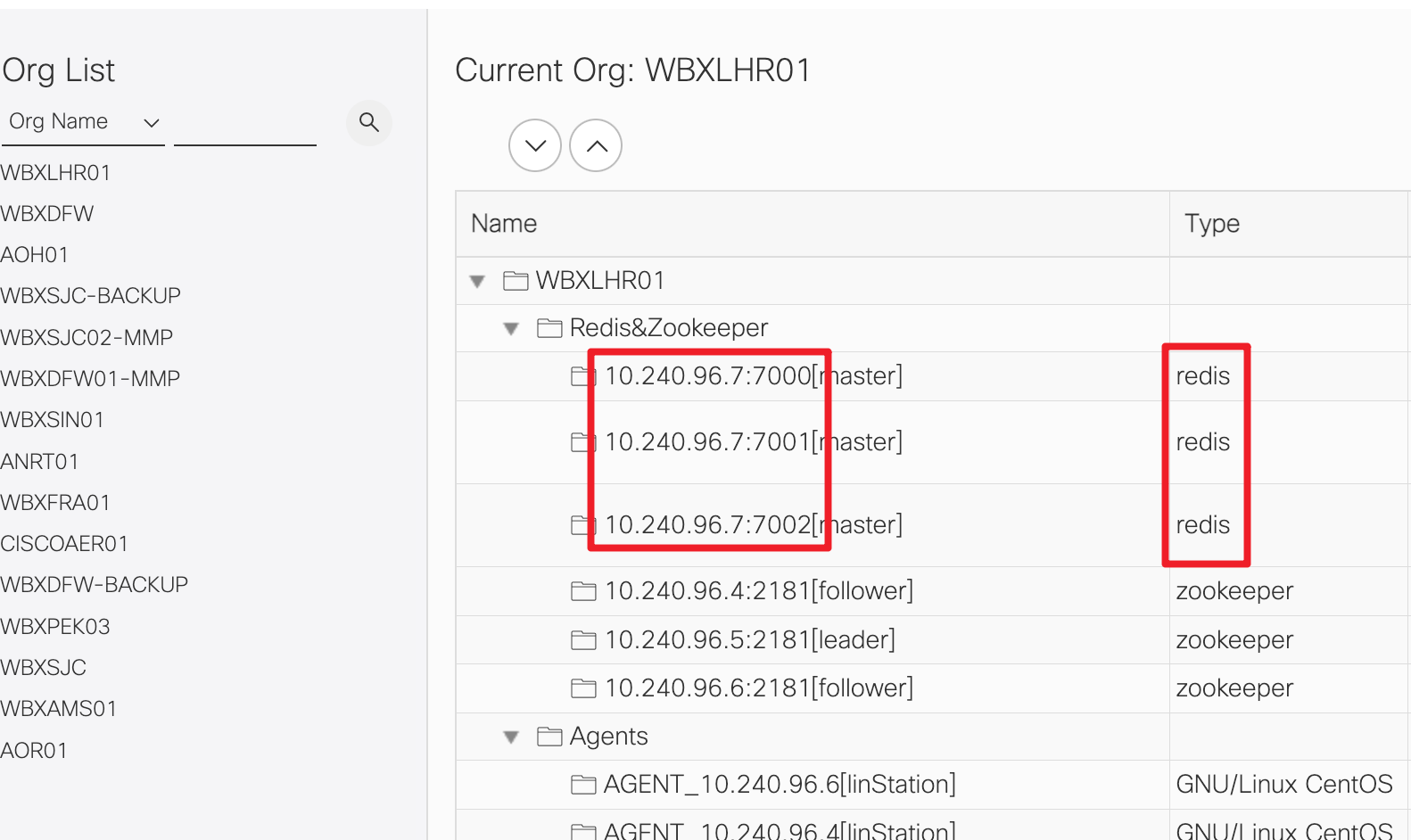

2. Find target cloud agent Redis cluster IP:port to connect ¶

Select target Agent (e.g. WBXLHRO1), then Search "redis" in cloud agent management page to get the Redis cluster IP:port

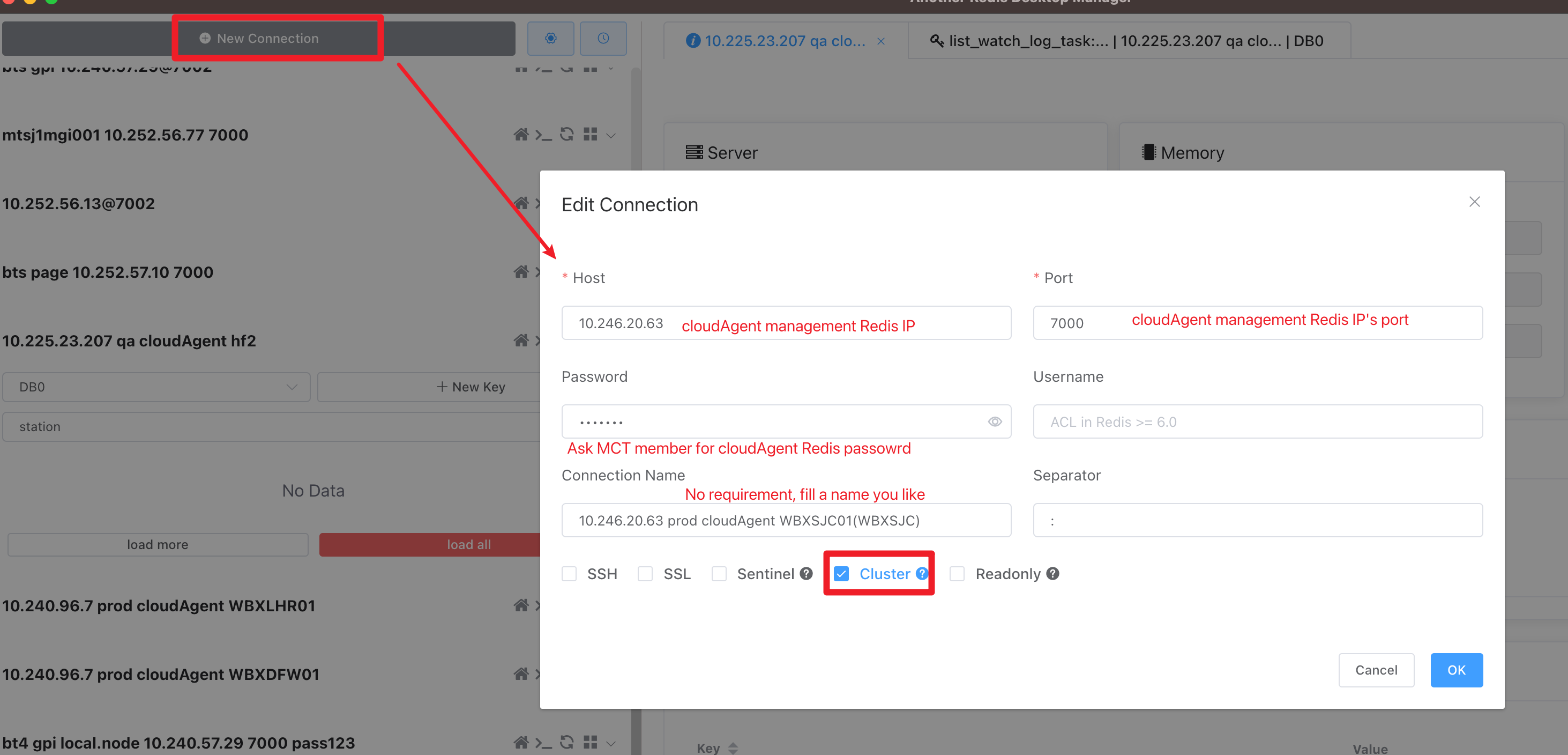

2. Connect to target cloud agent Redis cluster ¶

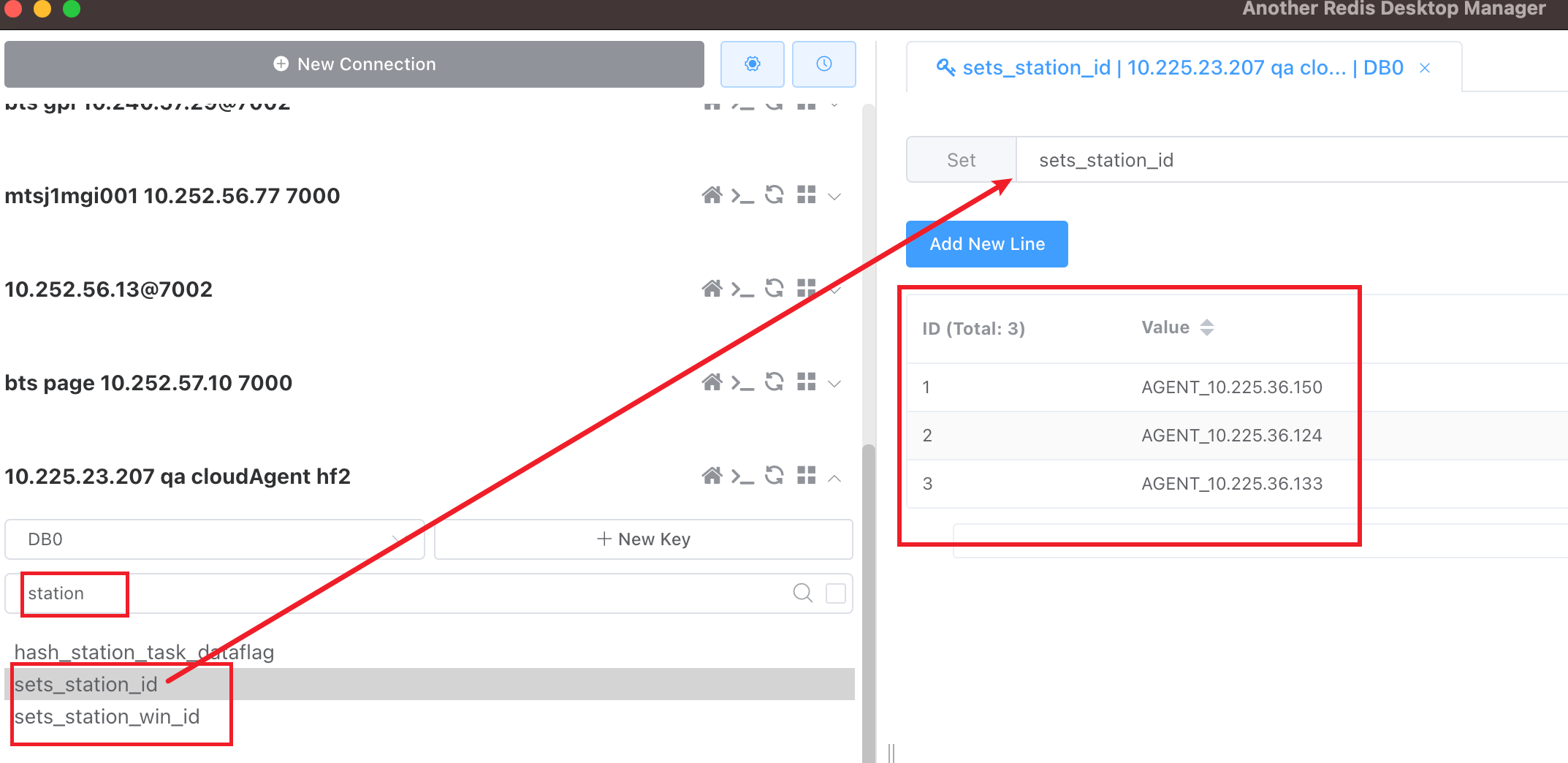

3. Check Agent node information ¶

The key word is station

Cloud agent issues fix cases ¶

Agent IP is 172.xx.xx.xx issue (Manual test always keeps init) ¶

1. Description ¶

Sometimes, the agent register information is correct, but the manual test still keeps in init

2. Locate ¶

Agent node IP starts with 172 in DB or Zookeeper, or Redis

3. Analyse ¶

An incorrect agent IP may cause the fake cloud agent selected as dispatcher, then cause cloud agent cluster can not receive tasks

4. How to fix ¶

If Zookeeper has the wrong agent IP, remove the wrong data in zookeeper first
Remove wrong ip agent data in Redis
Remove wrong ip agent data in DB
Restart any one cloud agent in the wrong IP agent's cluster

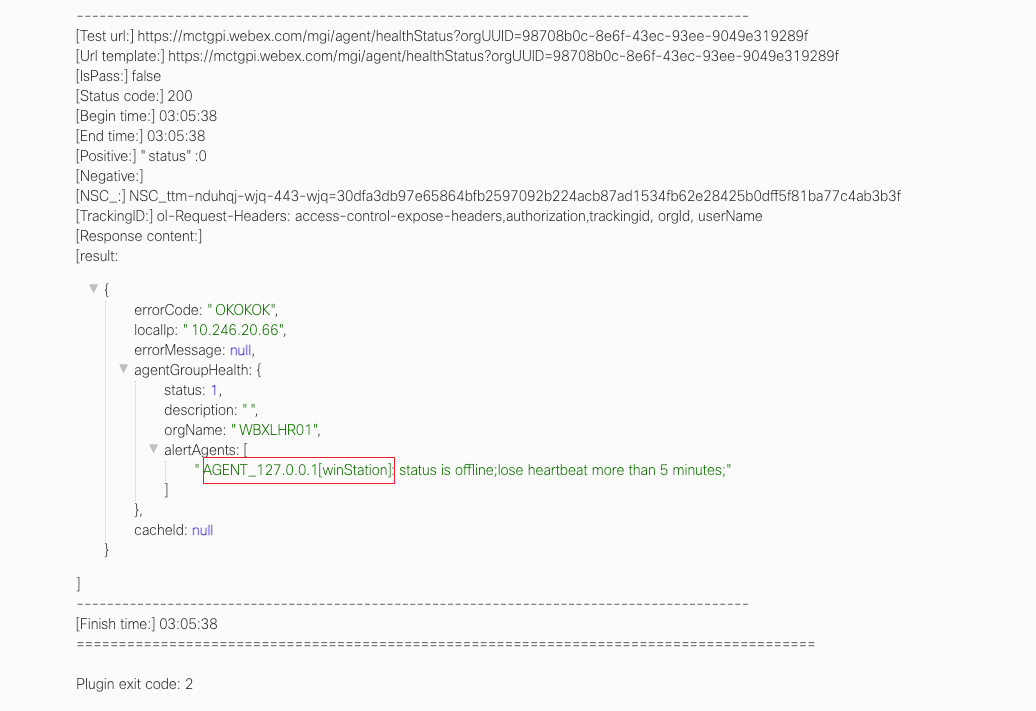

AGENT_127.0.0.1 lose heart beat issue ¶

1. Description ¶

2. Locate ¶

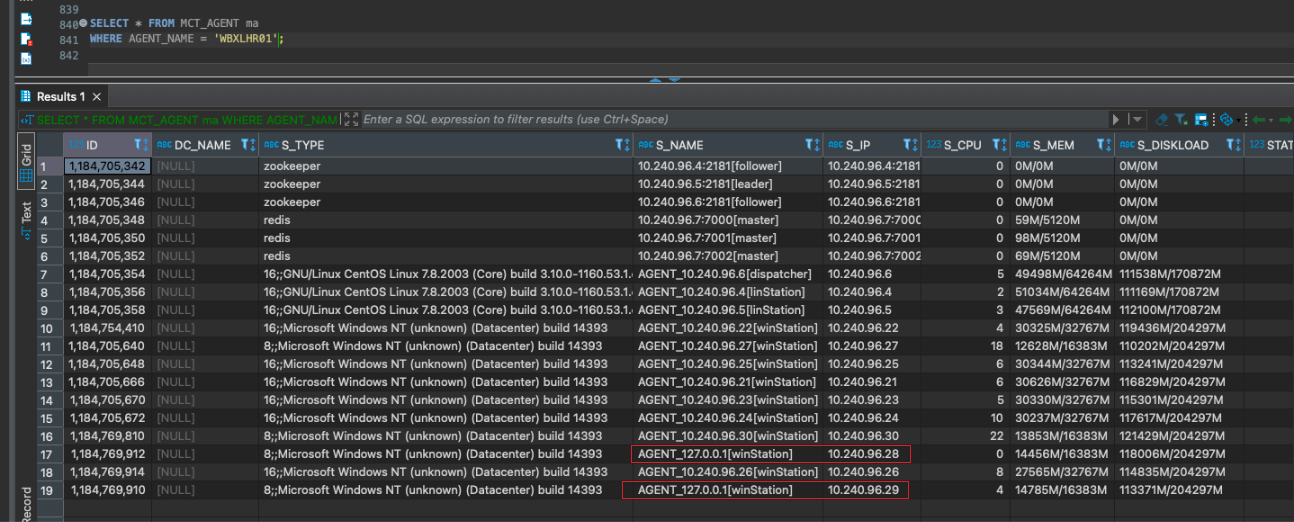

Check agent IP in DB will find that S_NAME "AGENT_127.0.0.1" IP is not the same as S_IP

3. Analyse ¶

AGENT_127.0.0.1 is the wrong Agent IP. We need to correct the agent node IP

4. How to fix ¶

Log in error agent server (S_IP server)
Restart cloud agent docker service
All will recover after 2 minutes

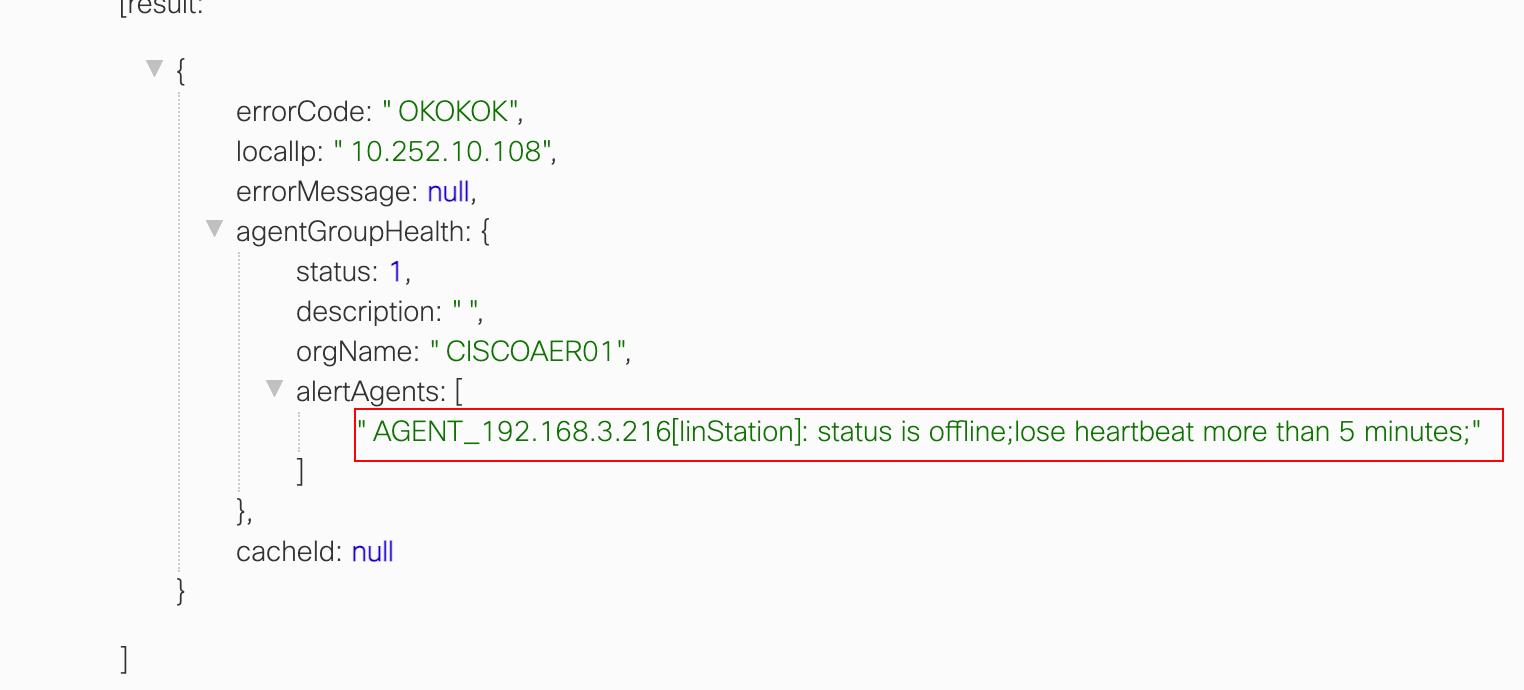

Agent Service is active, but details status shows offline (especially for CISCOAER01) ¶

1. Description ¶

2. Locate ¶

The offline agent service is actually active (docker ps will show).

3. Analyse ¶

Maybe some issue with the agent. Try to restart it.

4. How to fix ¶

Restart agent will fix.

Agent service fail to start ¶

Can not create directory ¶

1. Description ¶

Agent status keeps inactive after restarting agent service, stopping then starting agent service in agent server

2. Locate ¶

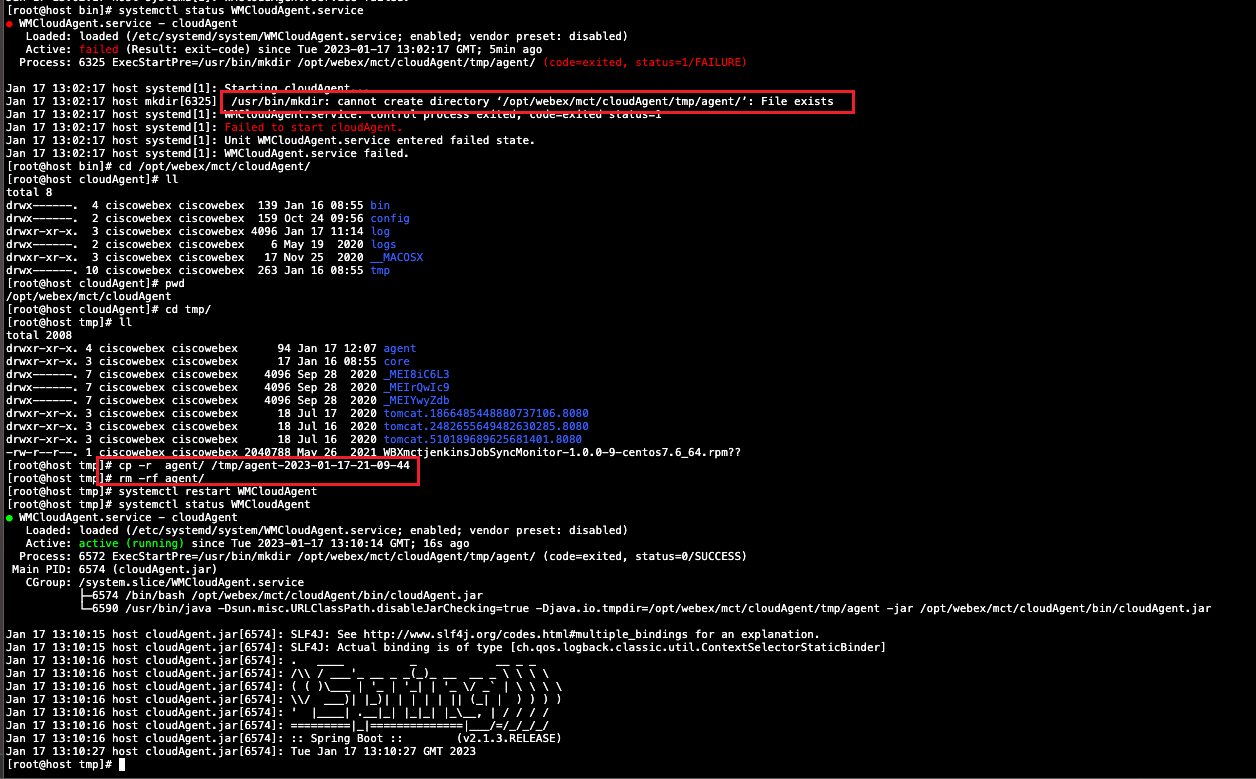

Aget status information shows can not create directory "xxx", file exists.

Analyse ¶

The existing file block agent service. Need to remove the file.

4. How to fix ¶

Remove the file in the error agent status log
Restart agent service

file owner is not `wbx-mct` ¶

1. Description ¶

Agent state keeps inactive after restarting agent service, stopping then start agent service in agent server

2. Locate and ¶

Some file owner under the linux agent folder is not wbx-mct.

3. Analyse ¶

Need to make the file owner become wbx-mct.

4. How to fix ¶

Change file owner to be wbx-mct
Restart agent service

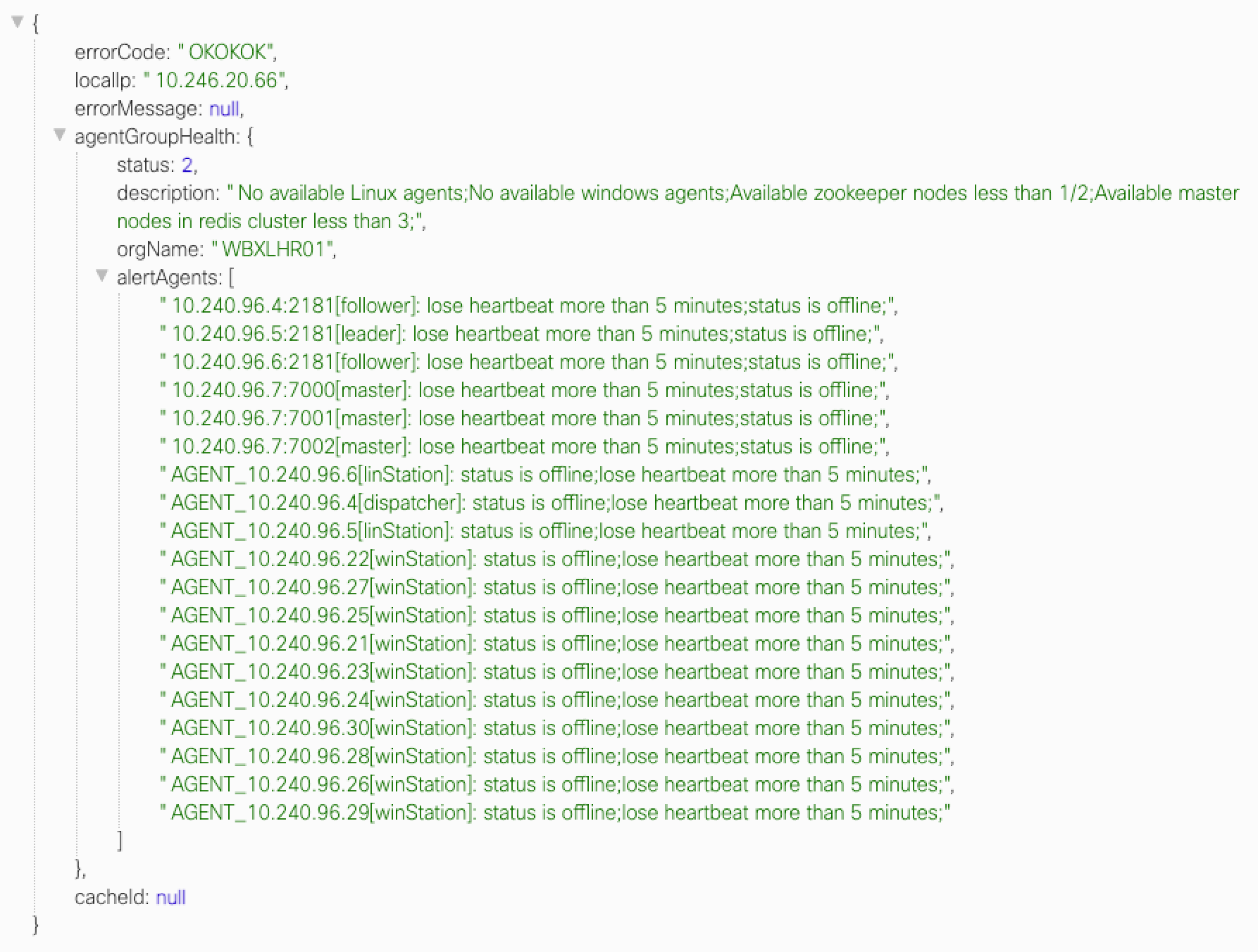

All agent node offline in a agent cluster ¶

Empty agent node in redis ¶

1. Description ¶

2. Locate ¶

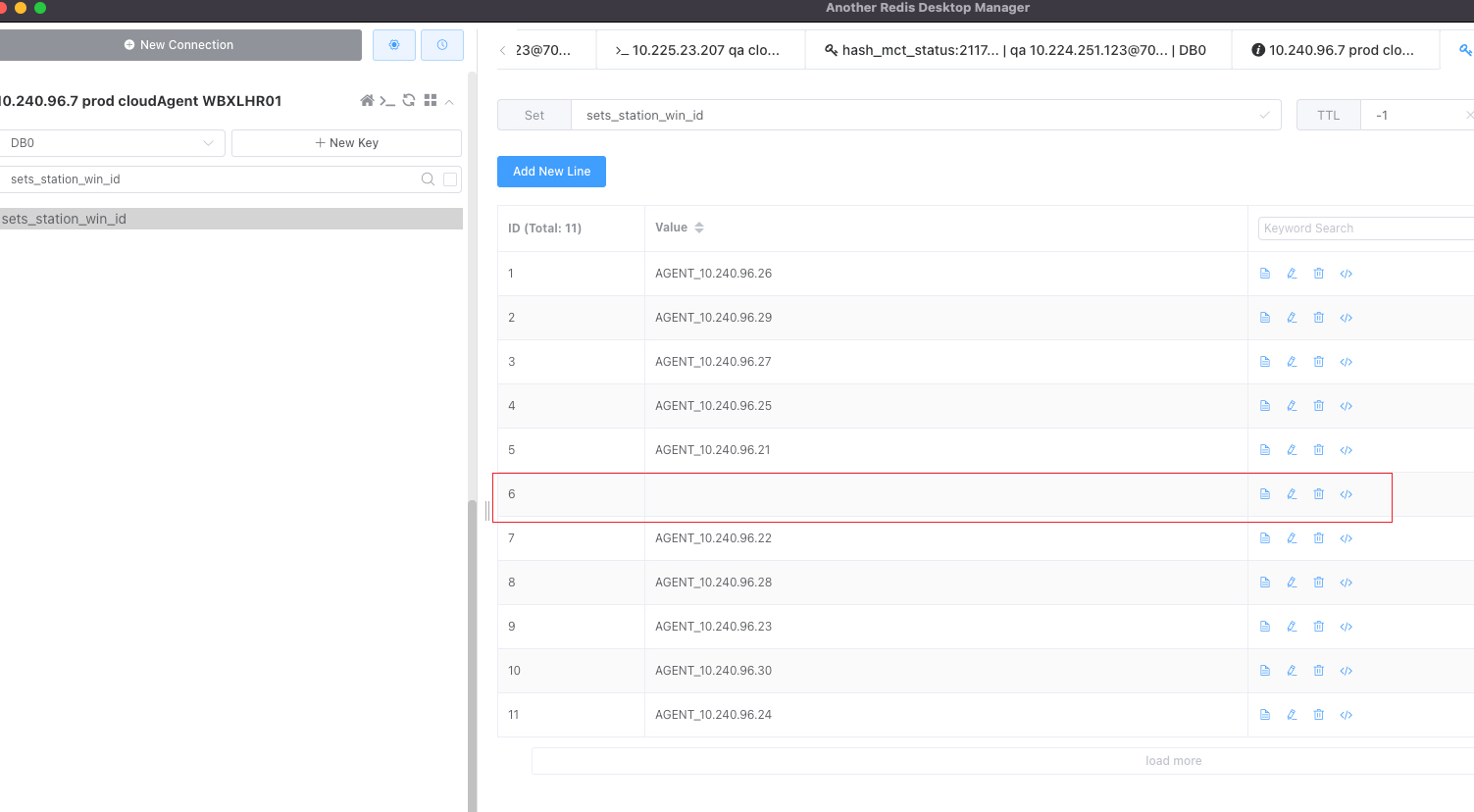

Find an empty agent node record in agent Redis

3. Analyse ¶

The empty agent node is the wrong data. Need to correct it

4. How to fix ¶

Manually remove the empty node in redis

Agent node data is correct ¶

1. Description ¶

All agent node is offline in a agent cluster, but all agent node information is correct.

2. Locate ¶

Agent error log show instance must be started before calling this method.

3. Analyse ¶

Maybe some zookeeper connection issue

4. How to fix ¶

Try following approach 1 first, if approach 1 not work, please try approach 2.

Approach 1: - Restart the leader zookeeper - Restart dispatcher service

Approach 2:

manual stop all zookeeper in server

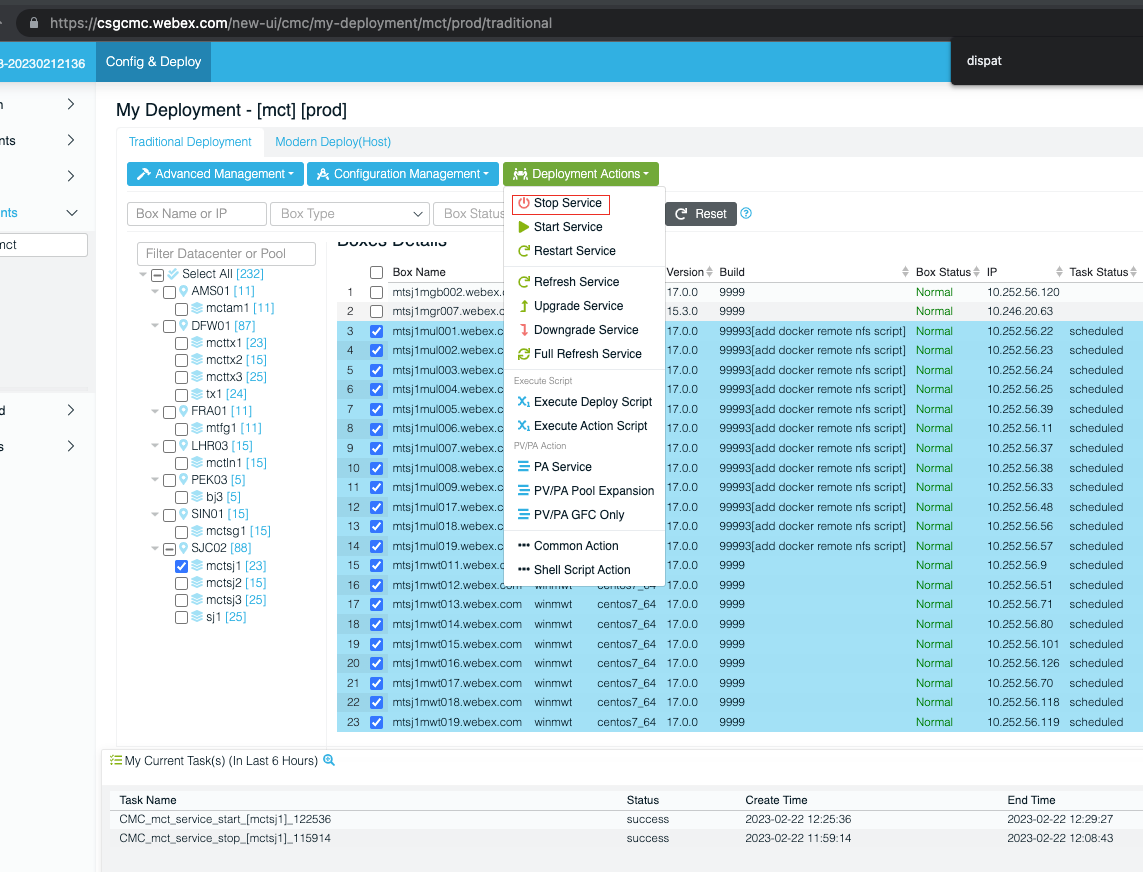

/opt/zookeeper/zookeeper-3.4.11/bin/zkServer.sh stop 2. CMC stop all WBXSJC mulsvr and winmwt

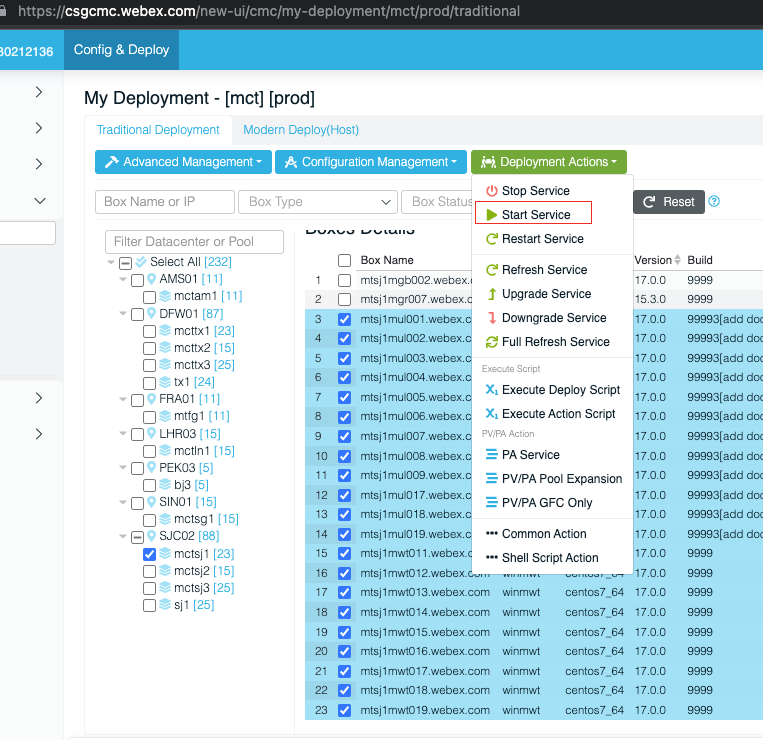

3. manual start all zookeeper in server

/opt/zookeeper/zookeeper-3.4.11/bin/zkServer.sh start 4. CMC start all WBXSJC mulsvr and wnmwt

Check stop issue ¶

Missing agent service ¶

1. Description ¶

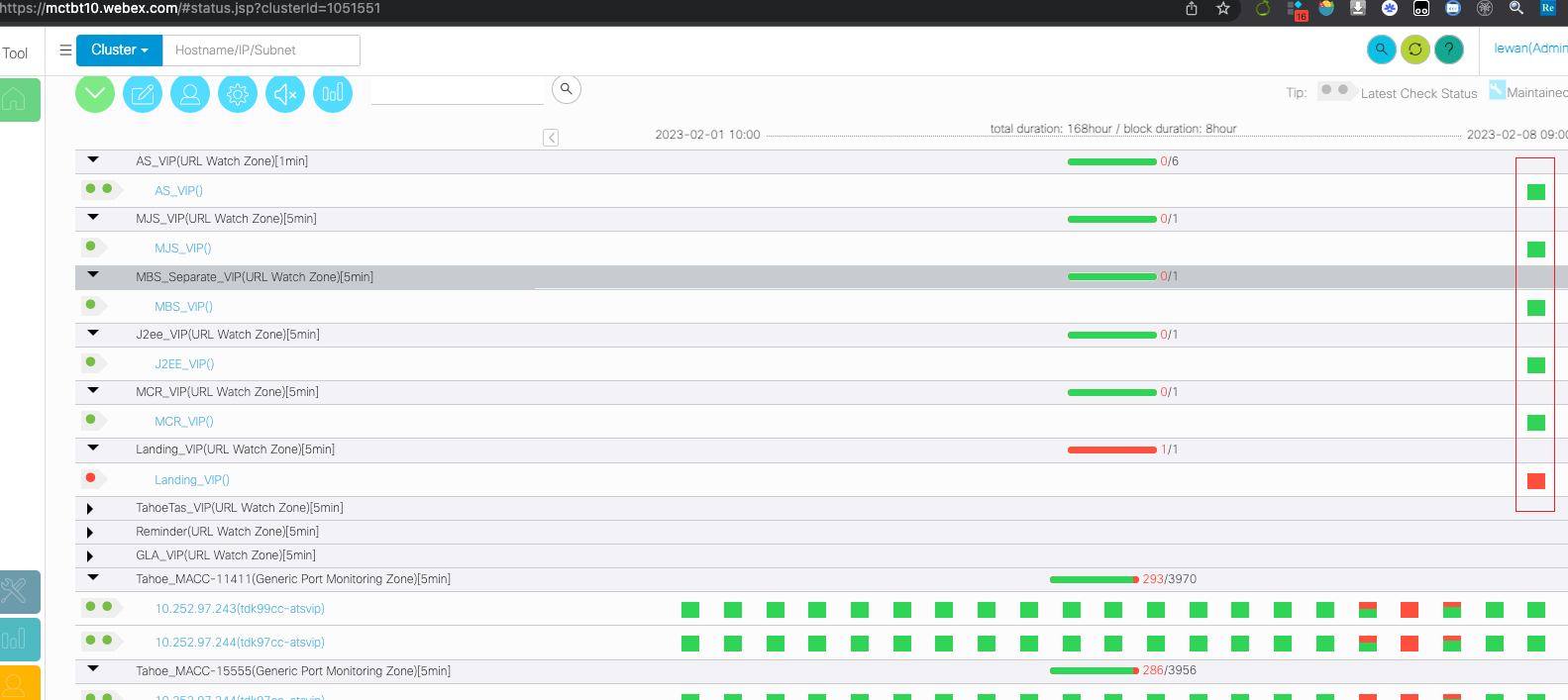

server has timer but no status (no maintain and no offline)

2. Locate ¶

Check agent management page, and find that there is a miss for an agent.

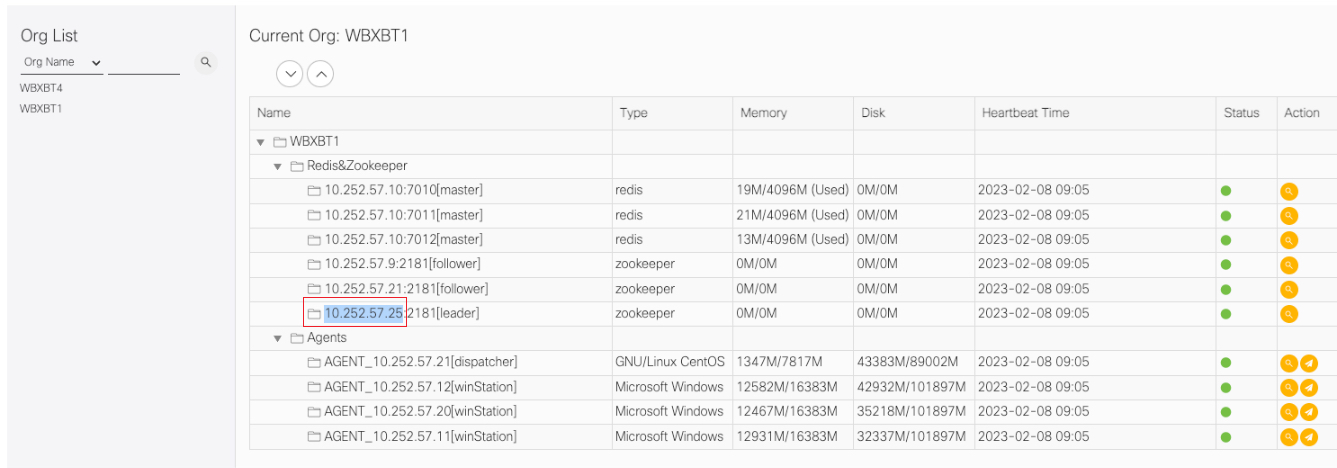

CASE: 10.252.57.25 is a zookeepr, and normally a zookeeper server will deploy a agent service, but there is no 10.252.57.25 for agent service in the page)

3. Analyse ¶

The missing agent may cause the issue.

4. How to fix ¶

Restart the missing agent service.

Not finding the root cause ¶

1. Description ¶

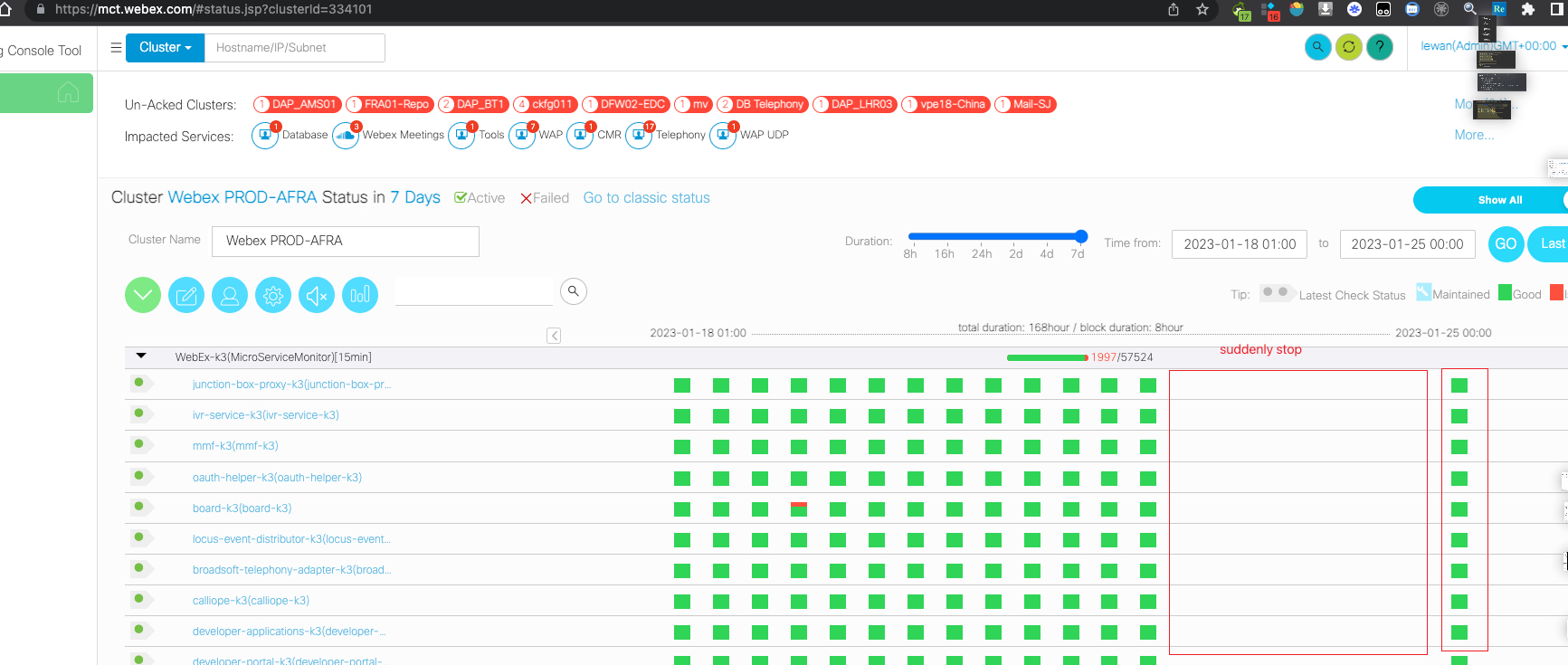

Sometimes check suddenly stopped and manual test with auto test cloud agent will keep Running state

2. Locate ¶

Not finding the root cause.

3. Analyse ¶

Not finding the root cause.

4. How to fix ¶

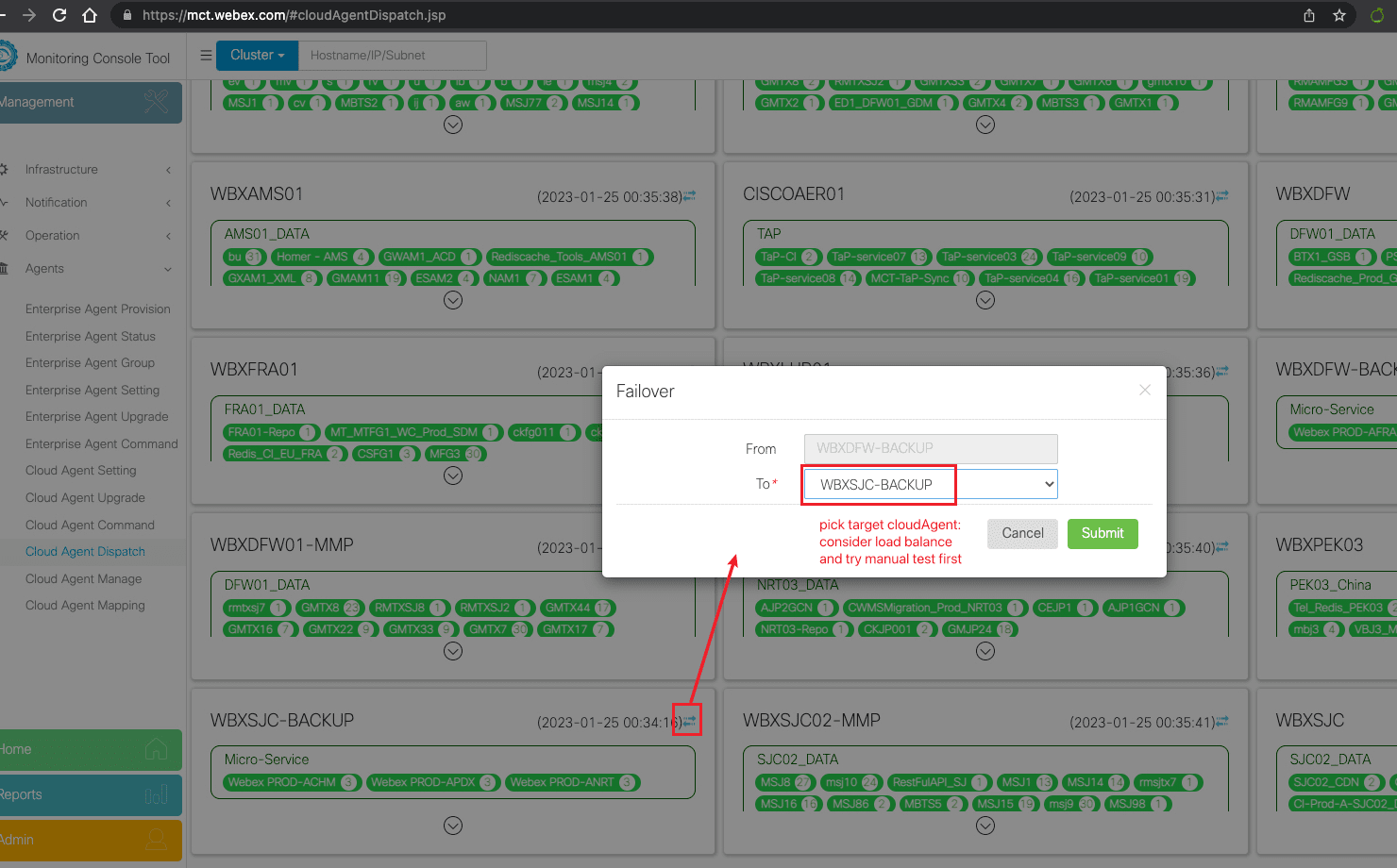

Temporary fix with agent failover
