Development Tutorial

This is a step-by-step guide about how to develop UAS and debug locally and remotely.

Pre-requisites ¶

Checkout following Git repositories on your local machine. ¶

Install JDK 8 ¶

* Confirm with java -version in shell.

java version "1.8.0_291"
Java(TM) SE Runtime Environment (build 1.8.0_291-b10)
Java HotSpot(TM) 64-Bit Server VM (build 25.291-b10, mixed mode)

Configure the environment variables JAVA_HOME to the PATH

Install Apache Maven 3.6.3 ¶

* See Installing Apache Maven for different OS (Windows, Linux and Mac OS X)
* Confirm with mvn -v in shell.

Apache Maven 3.6.3 (cecedd343002696d0abb50b32b541b8a6ba2883f)
Maven home: /usr/local/maven/apache-maven-3.6.3
Java version: 1.8.0_291, vendor: Oracle Corporation, runtime: /Library/Java/JavaVirtualMachines/jdk1.8.0_291.jdk/Contents/Home/jre
Default locale: en_CN, platform encoding: UTF-8
OS name: "mac os x", version: "10.16", arch: "x86_64", family: "mac"

Install python3 ¶

Use Homebrew install the latest Python, pip, and setuptools.
```
brew install python
```

Confirm with python3 --version in shell.
```
Python 3.8.9
```

Confirm with pip3 -V in shell.

pip 20.2.3 from /Library/Developer/CommandLineTools/Library/Frameworks/Python3.framework/Versions/3.8/lib/python3.8/site-packages/pip (python 3.8)

Development Steps ¶

Local Debug: ¶

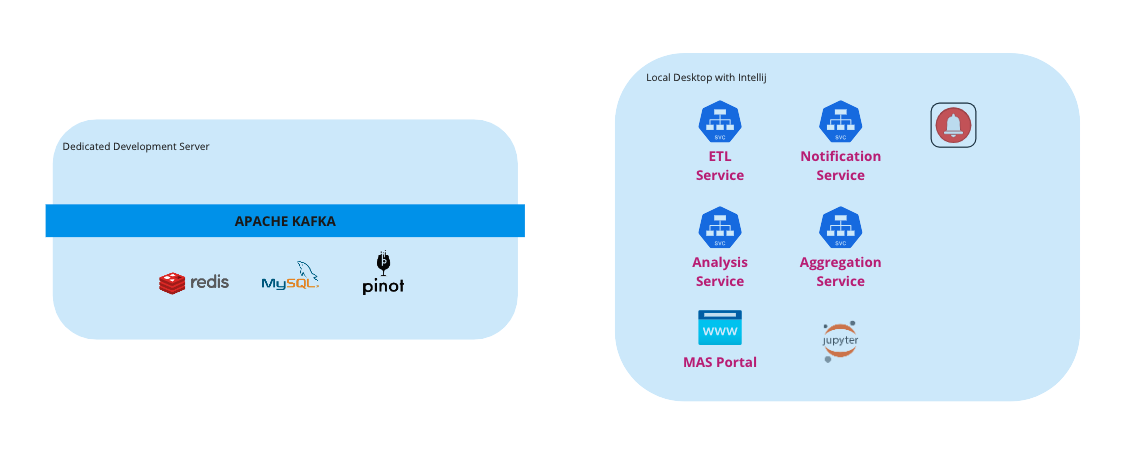

Allocate one dedicated server provided by UAS Jenkins Job ¶

Zookeeper, kafka, pinot, redis, mysql on this server are started by default. Then teams message will be sent to notify your dedicated development node information via teams bot UAS-Pipeline.

Run script of local_config.bash ¶

Pull configurations from kubed-app-configs
Get dedicated server ip and replace it in the yaml file
Set run arguments in intellij

Remote Debug: ¶

Currently only uas wfra environment(DEV) supports remote debug feature. ¶

Forward remote debug port to local: ETL:5001 AGG:5002 Notification:5003 Analysis:5004

kubectl port-forward mas-alert-aggregation-6db5569999-bv545 -n mas-alert-bts 5002:5002

Configure remote debug in IntelliJ ¶

Run -> Edit Configurations -> Add new configuration -> Remote JVM Debug
